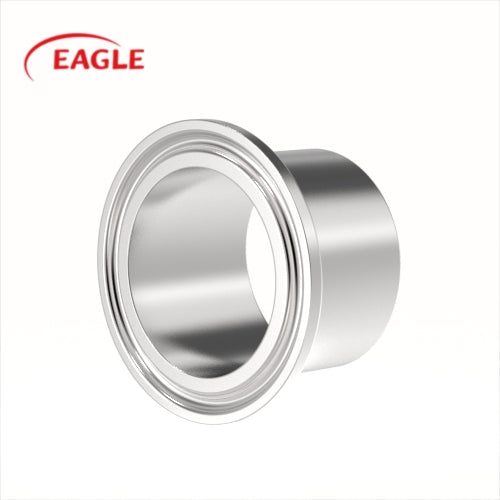

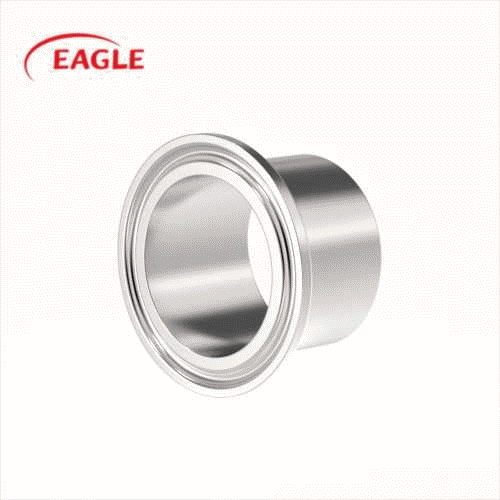

EAGLE™ 3A L14AM7 Tri-Clamp Long Weld Ferrule
From
$6.60
Unit price
/
Unavailable
EAGLE™ 3A L14AM7 Tri-Clamp Long Weld Ferrule
Long weld clamp ferrules allow extra room for welding capabilities when assembling process lines. Stainless steel design is offered in both 304 and 316L alloy options. Sizes for this product range from 1/2 inch all the way up to 12 inches. For joining clamp fittings to welded ends. Orbital weld is recommended to ensure proper connectivity, tri-clamp connections finish this process line.
3-A Sanitary Standards Inc. certifies products meet FDA and USDA regulations to prevent contamination in food, beverage, dairy, and pharmaceutical manufacturing environments.
|
Size |
A |
B |
C |
D |
||||
|
|
inch |
mm |
inch |
mm |
icnh |
mm |
inch |
mm |
|
0.5" |
0.370 |
9.4 |
0.500 |
12.7 |
0.992 |
25.2 |
1.126 |
28.6 |
|
0.75" |
0.620 |
15.7 |
0.750 |
19.05 |
0.992 |
25.2 |
1.126 |
28.6 |
|
1" |
0.874 |
22.2 |
1.000 |
25.4 |
1.988 |
50.5 |
1.126 |
28.6 |
|
1.5" |
1.370 |
34.8 |
1.500 |
38.1 |
1.988 |
50.5 |
1.126 |
28.6 |
|
2" |
1.870 |
47.5 |
2.000 |
50.8 |
2.520 |
64.0 |
1.126 |
28.6 |
|
2.5" |
2.370 |
60.2 |
2.500 |
63.5 |
3.051 |
77.5 |
1.126 |
28.6 |
|
3" |
2.870 |
72.9 |
3.000 |
76.2 |
3.583 |
91.0 |
1.126 |
28.6 |
|
4" |
3.834 |
97.4 |
4.000 |
101.6 |
4.685 |
119.0 |
1.126 |
28.6 |
|
6" |
5.782 |
146.9 |
6.000 |
152.4 |
6.567 |
166.8 |
1.500 |
38.1 |
|
8" |
3.845 |
97.7 |
8.000 |
203.2 |
8.571 |
217.7 |
1.500 |
38.1 |
|
10" |
9.732 |
247.2 |
10.000 |
254.0 |
10.571 |
268.5 |
1.500 |
38.1 |
|
12" |
11.732 |
298 |
12.000 |
304.8 |
12.571 |
319.3 |
1.500 |
38.1 |
