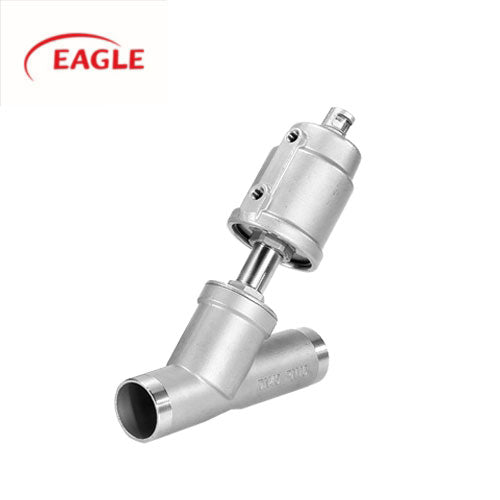

EAGLE™ 3A Stainless Steel Angle Seat Valve

$90.00
No reviews
EAGLE™ 3A Stainless Steel Angle Seat Valve - Sanitary Fittings
EAGLE

EAGLE™ 3A Stainless Steel Angle Seat Valve

From $90.00

Shut off gaseous or liquid media in pipe systems with Angle Seat Valve

  • Weld End Anlge Seat Valve with Pneumatic Actuator
  • SUS316L
  • Working Pressure 0-16 Bar
  • Medium Temp. -10℃~180℃ (Neutral Gas/Air)
  • PTFE Sealing

Angle seat valve features an open or closed position display for real-time monitoring. Its external pneumatic pilot extends service life with low maintenance. A self-adjusting sealing gland enhances performance, while the angle seat structure ensures a large flow rate and compact design. The valve exhibits minimal flow resistance, eliminating water hammer. Its Y-type design increases flow by 30%, ensuring longevity and seat automatic calibration. The cylinder's stainless steel or PA construction meets harsh environment needs. The valve's versatile installation at any position and 360-degree rotation offer adaptability in various setups. In conclusion, this innovative valve excels in performance, durability, and versatility for industrial applications.

Dimension




Size

Actuator

B

R

H

D

S

A

L

1/2"

40

50.5

27

112

12.7

1.65

118

70

50

60

33

125

128



1"

50

60

33

136



25.4



1.65

150



100

63

75

41

162

175

90AL

112

57

210

216

90

106

55

211

218



1 1/4"

63

75

41

174



31.75



1.65

186



125

90AL

112

57

220

230

90

106

55

223

232



1 1/2"

63

75

41

175



38.1



1.65

190



130

90AL

112

57

220

232

90

106

55

223

235



2"

63

75

41

183



50.8



1.65

206



155

90AL

112

57

232

247

90

106

55

232

250

125AL

148

74

287

250



Technical Support





OD Size

  • 1/2"
  • 3/4"
  • 1"
  • 1 1/2"
  • 2"
  • 2 1/2"
  • 3"
  • 4"

Grade

  • 316L
