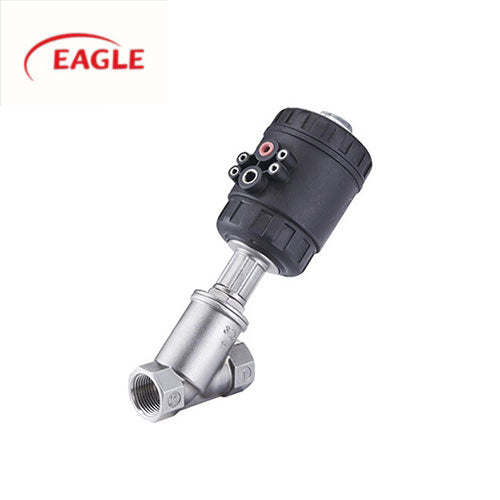

EAGLE™ 3A Thread PA-Actuator Angle Seat Valve

$178.50
No reviews
EAGLE™ 3A Thread PA-Actuator Angle Seat Valve - Sanitary Fittings
EAGLE

EAGLE™ 3A Thread PA-Actuator Angle Seat Valve

From $178.50

Shut off gaseous or liquid media in pipe systems with Angle Seat Valve

  • Thread End Anlge Seat Valve with Pneumatic Actuator
  • SUS316L
  • Working Pressure 0-16 Bar
  • Medium Temp. -10℃~180℃ (Neutral Gas/Air)
  • PTFE Sealing

Angle seat valve features an open or closed position display for real-time monitoring. Its external pneumatic pilot extends service life with low maintenance. A self-adjusting sealing gland enhances performance, while the angle seat structure ensures a large flow rate and compact design. The valve exhibits minimal flow resistance, eliminating water hammer. Its Y-type design increases flow by 30%, ensuring longevity and seat automatic calibration. The cylinder's stainless steel or PA construction meets harsh environment needs. The valve's versatile installation at any position and 360-degree rotation offer adaptability in various setups. In conclusion, this innovative valve excels in performance, durability, and versatility for industrial applications.

Dimension

Size

Actuator

L

A

H

D

E

3/8"

Ø50

65

165

120

3/8"

64

1/2"

Ø50

86

172

137

1/2"

64

3/4"

Ø50

95

178

145

3/4"

64

1"

Ø50

105

210

165

1"

64

1 1/4"

Ø63

120

220

180

1 1/4"

80






Technical Support





OD Size

  • 1/2"
  • 3/4"
  • 1"
  • 1 1/2"
  • 2"
  • 2 1/2"
  • 3"
  • 4"

Grade

  • 316L
