Sanitary Sample Valves for high-purity process piping applications
- 3A Sampling Valve
- Available in Tri Clamp or Butt Weld Connections
- Angled Styles
- Easy disassembly
- Max pressure: 150 PSI
- Max Temp. 250° F

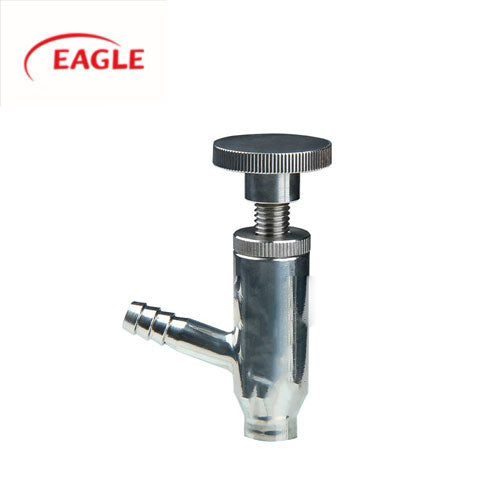

Eagle 3A Sanitary Sample Valve - Weld End
Product Specifications & Features
Technical Details & Sizing Information
- • Size Range: 1/2", 3/4", 1"
- • Standard Price: $19 each (all sizes)
- • Surface Finish: Mechanical or Electropolished
- • Seal Material: Standard EPDM, FKM/Viton optional
- • Zero Dead Leg Design: Complete drainage, no fluid entrapment
- • Sterile Sampling: Steam sterilizable (SIP), CIP compatible
- • Operation: Manual operation, pneumatic optional
- • Sampling Port: Standard Luer lock or threaded connection
Key Advantages of Eagle Sample Valves
Applications & Industry Uses
Aseptic sampling from fermenters, bioreactors, purification systems, and WFI systems. Complies with cGMP requirements, sterilizable, ensuring sterile sampling processes.
Process monitoring sampling in dairy, brewing, and beverage production lines. 3A certified for food safety, easy-to-clean CIP design.
Sampling of high-purity raw materials and finished products, ensuring product quality consistency. 316L stainless steel prevents product contamination.
Pricing & Configuration Options
| Product Model | Size | Standard Price | Lead Time |
|---|---|---|---|
| ESV-12-W (Weld End) | 1/2" | $19 | 2-5 business days |
| ESV-34-W (Weld End) | 3/4" | $19 | 2-5 business days |
| ESV-1-W (Weld End) | 1" | $19 | 2-5 business days |
Why Choose Eagle as Your Sample Valve Manufacturer
Sanitary Sample Valve FAQ
Request Quote & Technical Consultation
Contact Eagle for Sample Valve Pricing and Technical Support
GET SAMPLE VALVE QUOTATION4-Hour Response Time | Free Application Consultation | Complete Technical Specifications | Bulk Order Discounts | Certification Documentation Provided
Designed specifically to meet the stringent requirements of the bioprocessing industry. Mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the waste liquid.
No dead corner. Taper inside so that liquid can be completely discharged.
Dimension
| SIZE | B | C | D | |||
| in | mm | in | mm | in | mm | |
| 1/2" | 0.50 | 12.7 | 2.95 | 75 | 1.97 | 50 |
| 3/4" | 0.75 | 19.05 | 2.95 | 75 | 1.97 | 50 |
| 1" | 1.00 | 25.4 | 2.95 | 75 | 1.97 | 50 |
About Egle
Eagle Ultrapure Fittings- ASME BPE
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
