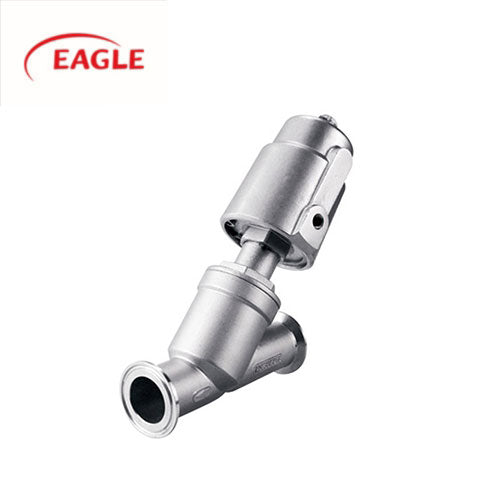

EAGLE™ 3A Tri-clamp Angle Seat Valve

$105.00
No reviews
EAGLE™ 3A Tri-clamp Angle Seat Valve - Sanitary Fittings
EAGLE

EAGLE™ 3A Tri-clamp Angle Seat Valve

From $105.00

Shut off gaseous or liquid media in pipe systems with Angle Seat Valve

  • Clamp End Angle Seat Valve with Pneumatic Actuator
  • SUS316L
  • Working Pressure 0-16 Bar
  • Medium Temp. -10℃~180℃ (Neutral Gas/Air)
  • PTFE Sealing

Angle seat valve features an open or closed position display for real-time monitoring. Its external pneumatic pilot extends service life with low maintenance. A self-adjusting sealing gland enhances performance, while the angle seat structure ensures a large flow rate and compact design. The valve exhibits minimal flow resistance, eliminating water hammer. Its Y-type design increases flow by 30%, ensuring longevity and seat automatic calibration. The cylinder's stainless steel or PA construction meets harsh environment needs. The valve's versatile installation at any position and 360-degree rotation offer adaptability in various setups. In conclusion, this innovative valve excels in performance, durability, and versatility for industrial applications.

Dimension


Size

Actuator

D

D1

C

d

L

A

H

3/4"

50

25.2

27.5

19.1

15.8

80

140

126

1"

50

50.5

43.5

25.4

22.1

130

165

140

63

188

166

1.25"

63

50.5

43.5

31.8

28.5

146

200

174

90

245

223

1.5"

63

50.5

56.5

38.1

34.8

160

210

175

90

255

223

2"

63

64

56.5

50.8

47.5

175

221

185

90

265

235





Technical Support





OD Size

  • 1/2"
  • 3/4"
  • 1"
  • 1 1/2"
  • 2"
  • 2 1/2"
  • 3"
  • 4"

Grade

  • 316L
