EAGLE™ 3A Manual Diaphragm Valves Clamp

$769.70
No reviews
EAGLE™ 3A Manual Diaphragm Valves Clamp - Sanitary Fittings
EAGLE

EAGLE™ 3A Manual Diaphragm Valves Clamp

From $769.70

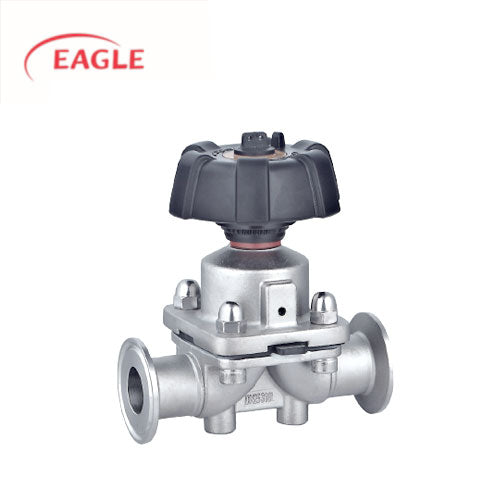

Sanitary Diaphragm Valves for high-purity process piping applications

  • 3A Manual Diaphragm Valves
  • 316L for fluid contact
  • Working Pressure 10 Bar
  • EPDM Sealing: -20℃ ~ 135℃ ( 150℃ Max 20min )
  • VMQ Sealing Optional

Combining world-class industry experience with engineering and manufacturing facilities located in both the USA and China. The valve body constructed from Stainless steel 316L with the manual or pneumatic operation, automated with a valve positioner. Connection End available in tri-clover/clamp, butt weld or thread. There is no path contact to the outer environment, specifically use for aseptic processes biopharmaceutical industries.




Dimension

Size

L

L1

K

D

C

H

0.5"

108

102

65

12.7

50.5

103

0.75"

126

120

87

19.05

50.5

103

1"

126

120

87

25.4

50.5

122

1.5"

160

140

104

38.1

50.5

160

2"

193

150

114

50.8

64

190


No. Description
1 Cap
2 Handwheel
3 Screw
4 Valve Rod
5 Valve Cap
6 Valve Core
7 Diaphragm
8 Valve Body
9 Nut



 Installation






Size

  • 1/2"
  • 3/4"
  • 1"
  • 1 1/2"
  • 2"
  • 2 1/2"
  • 3"
  • 4"

Grade

  • 316L
View product
