3A 13MHHS 3-Segment Heavy Duty Clamp
From
$14.60
Unit price
/
Unavailable
3A 13MHHS 3-Segment Heavy Duty Clamp
Sanitary 3-Segment Clamp with a wingnut is made from 304 stainless steel alloy. It is used to join two separate tri-clamp ends to one another and allows for more flexibility than the single-pin heavy duty clamp. A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection. Do not over tighten wing-nut as this may damage product. If you need 316L clamps, pls contact sales@ealgefittings.com for a quote.
|

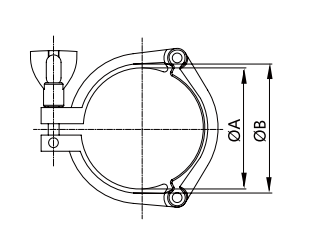

Size |
A |
B |
||
|
|
inch |
mm |
inch |
mm |
|
1"-1.5" |
1.748 |
44.4 |
2.122 |
53.6 |
|
2" |
2.276 |
57.8 |
2.654 |
67 |
|
2.5" |
2.811 |
71.4 |
3.185 |
80.6 |
|
3" |
3.307 |
84 |
3.717 |
94.2 |
|
3.5" |
3.898 |
99 |
4.299 |
109.2 |
|
4" |
4.331 |
110 |
4.820 |
122.2 |
|
4.5" |
4.843 |
123 |
5.244 |
133.2 |
|
6" |
6.118 |
155.4 |
6.695 |
170.4 |
Size
Grade
