3A 13MHHS 3-Segment Heavy Duty Clamp

$14.60
No reviews
EAGLE™ 3A 13MHHS  3-Segment Heavy Duty Clamp - Sanitary Fittings
EAGLE

3A 13MHHS 3-Segment Heavy Duty Clamp

From $14.60

Securely connect tri-clamp ends with heavy-duty, stainless steel three-segment clamp (13MHHS)

Sanitary 3-Segment Clamp with a wingnut is made from 304 stainless steel alloy. It is used to join two separate tri-clamp ends to one another and allows for more flexibility than the single-pin heavy duty clamp. A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection. Do not over tighten wing-nut as this may damage product. If you need 316L clamps, pls contact sales@ealgefittings.com for a quote.

Dimension

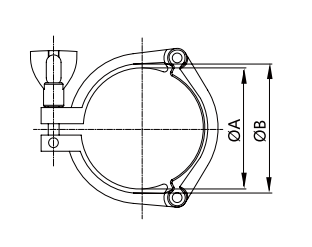

3-Segment Clamp Drawing



Size

A

B



inch

mm

inch

mm

1"-1.5"

1.748

44.4

2.122

53.6

2"

2.276

57.8

2.654

67

2.5"

2.811

71.4

3.185

80.6

3"

3.307

84

3.717

94.2

3.5"

3.898

99

4.299

109.2

4"

4.331

110

4.820

122.2

4.5"

4.843

123

5.244

133.2

6"

6.118

155.4

6.695

170.4

Size

  • 1"-1 1/2"
  • 2"
  • 2 1/2"
  • 3"
  • 4"
  • 6"
  • 8"
  • 10"
  • 12"

Grade

  • 304
