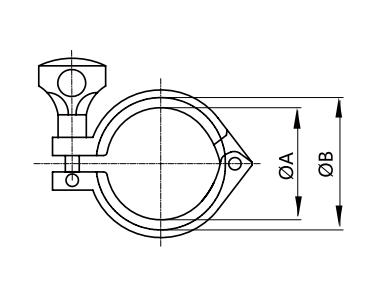

Size |
A |
B |
||
|
inch |
mm |
inch |
mm |
0.5"-0.75" |
0.787 |
20 |
1.062 |
28 |
1"-1.5" |
1.748 |
44.4 |
2.122 |
53.6 |
2" |
2.276 |
57.8 |
2.654 |
67 |
2.5" |
2.811 |
71.4 |
3.185 |
80.6 |
3" |
3.307 |
84 |
3.717 |
94.2 |
3.5" |
3.898 |
99 |
4.299 |
109.2 |
4" |
4.331 |
110 |
4.820 |
122.2 |
4.5" |
4.843 |
123 |
5.244 |
133.2 |
6" |
6.118 |
155.4 |
6.695 |
170.4 |
8" |
8.071 |
205 |
8.695 |
220 |
10" |
10.118 |
257 |
10.695 |
272 |
12" |
12.126 |
308 |
12.695 |
323 |

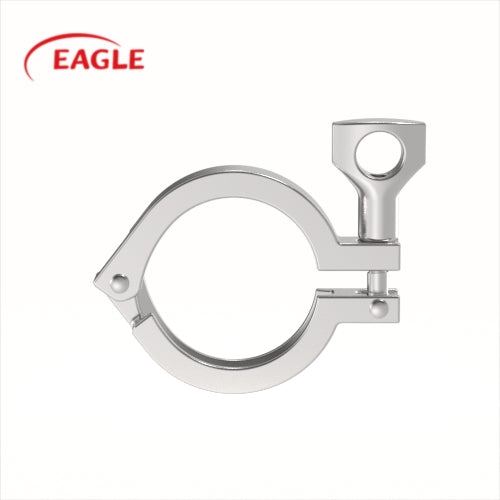

Securely connect tri-clamp ends with heavy-duty, stainless steel single-pin clamp
It is made from 304 stainless steel alloy (Also available in 316). It is used to join two separate tri-clamp ends to one another. Sizes on this product range from 1/2 inch all the way up to 12 inches in diameter.
A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection. Do not over-tighten the wing-nut as this may damage the product. The recommended amount of tension is to tighten the wing-nut until it becomes snug, then perform one more half twist for the proper amount.
