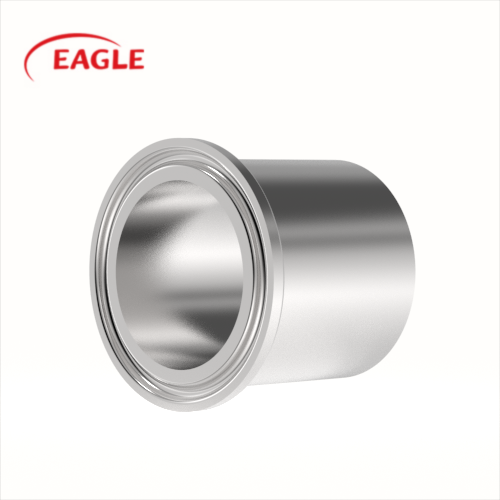

EAGLE™ 3A 14MPW Tri-Clamp Heavy Wall Tank Weld Ferrule(Spud)
From
$11.60
Unit price
/
Unavailable
EAGLE™ 3A 14MPW Tri-Clamp Heavy Wall Tank Weld Ferrule(Spud)
Available in 316 stainless steel alloy and a variety of tube diameter sizes. This product is manufactured in accordance with 3A Specifications for standards required by food, beverage and dairy processing equipment.
3-A Sanitary Standards Inc. certifies products meet FDA and USDA regulations to prevent contamination in food, beverage, dairy, and pharmaceutical manufacturing environments.
|
Size |
A |
B |
C |
|||
|
|
inch |
mm |
inch |
mm |
inch |
mm |
|
0.5" |
1.625 |
41.3 |
0.321 |
8.1 |
0.502 |
12.7 |
|
0.75" |
1.625 |
41.3 |
0.574 |
14.6 |
0.75 |
19.0 |
|
1" |
1.625 |
41.3 |
0.87 |
22.1 |
1.16 |
29.4 |
|
1.5" |
1.625 |
41.3 |
1.37 |
34.8 |
1.676 |
42.6 |
|
2" |
1.75 |
44.4 |
1.87 |
47.5 |
2.192 |
55.7 |
|
2.5" |
1.75 |
44.4 |
2.37 |
60.2 |
2.708 |
68.8 |
|
3" |
1.813 |
46.0 |
2.87 |
72.9 |
3.224 |
81.9 |
|
4" |
2.125 |
54.0 |
3.834 |
97.4 |
4.256 |
108.1 |
|
6" |
2.5 |
63.5 |
5.758 |
146.2 |
6.192 |
157.3 |
|
8" |
2.5 |
63.5 |
7.758 |
197.0 |
8.192 |
208.1 |
Size
Grade
