☎+86-577-86826961
sales@eaglefittings.com
EAGLE ™ 3A 13MHHM-DP Double Hinged Heavy Duty Clamp
Free shipping
On all orders over $199
Special offers
Regular sales and discounts
Easy returns
Hassle free returns policy
Chat facility
Talk to a real person

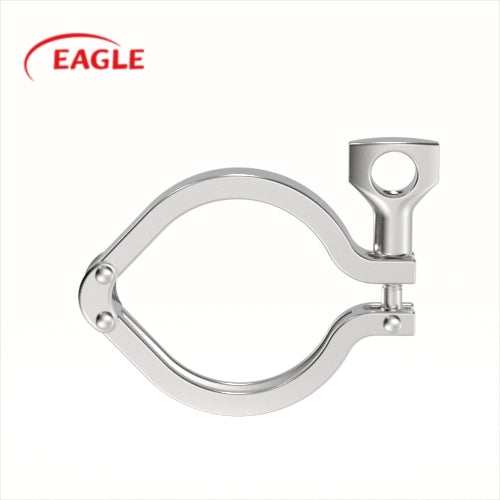

The double pin heavy duty clamp with a wingnut is made from Grade 304 stainless steel alloy. It is used to join two separate tri-clamp ends to one another and allows for more flexibility than the single-pin heavy duty clamp. A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection. Do not over tighten wing-nut as this may damage product.

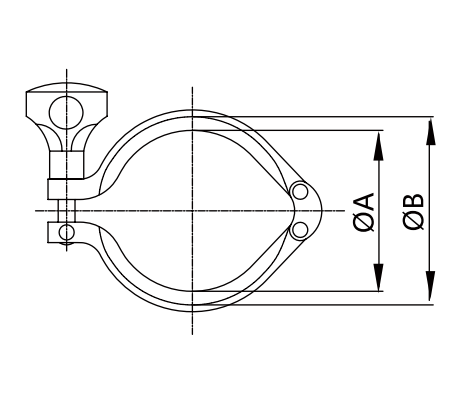

Size |
A |
B |
||
|
inch |
mm |
inch |
mm |
1"-1.5" |
1.748 |
44.4 |
2.122 |
53.6 |
2" |
2.276 |
57.8 |
2.654 |
67 |
2.5" |
2.881 |
71.4 |
3.185 |
80.6 |
3" |
3.307 |
84 |
3.717 |
94.2 |
3.5" |
3.898 |
99 |
4.299 |
109.2 |
4" |
4.331 |
110 |
4.820 |
122.2 |
4.5" |
4.843 |
123 |
5.244 |
133.2 |
6" |
6.118 |
155.4 |
6.695 |
170.4 |
About Egle
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
The double pin heavy duty clamp with a wingnut is made from Grade 304 stainless steel alloy. It is used to join two separate tri-clamp ends to one another and allows for more flexibility than the single-pin heavy duty clamp. A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection. Do not over tighten wing-nut as this may damage product.
Size |
A |
B |
||
|
inch |
mm |
inch |
mm |
1"-1.5" |
1.748 |
44.4 |
2.122 |
53.6 |
2" |
2.276 |
57.8 |
2.654 |
67 |
2.5" |
2.881 |
71.4 |
3.185 |
80.6 |
3" |
3.307 |
84 |
3.717 |
94.2 |
3.5" |
3.898 |
99 |
4.299 |
109.2 |
4" |
4.331 |
110 |
4.820 |
122.2 |
4.5" |
4.843 |
123 |
5.244 |
133.2 |
6" |
6.118 |
155.4 |
6.695 |
170.4 |
Size
Grade
