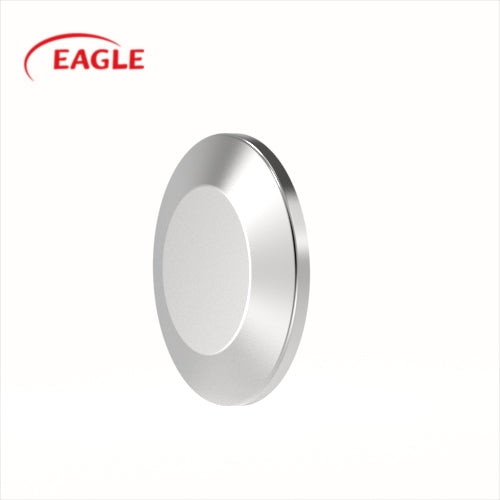

The solid tri-clamp end cap is available in both 304 and 316L stainless steel alloys. This product is meant to cap an existing process line. Available in sizes ranging from 1/2 inch all the way to 12 inches. This product is manufactured in accordance with 3A Standards for sanitary grade line processing in the food, beverage and pharmaceutical industries. This product is typically in stock in various sizes and can be shipped out the same day as your order.
3-A Sanitary Standards Inc. certifies products meet FDA and USDA regulations to prevent contamination in food, beverage, dairy, and pharmaceutical manufacturing environments.

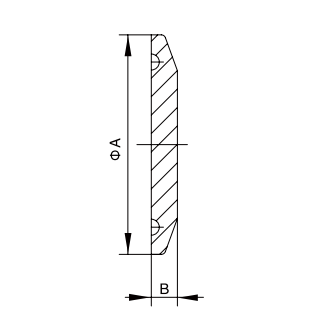

Size |
A |
B |
||
inch |
mm |
inch |
mm |
|
0.5"-0.75" |
0.992 |
25.2 |
0.252 |
6.4 |
1.339 |
34 |
0.252 |
6.4 |
|
1"-1.5" |
1.988 |
50.5 |
0.252 |
6.4 |
2" |
2.520 |
64 |
0.252 |
6.4 |
2.5" |
3.051 |
77.5 |
0.252 |
6.4 |
3" |
3.583 |
91.0 |
0.252 |
6.4 |
4" |
4.685 |
119.0 |
0.311 |
7.9 |
6" |
6.567 |
166.8 |
0.437 |
11.1 |
8" |
8.571 |
217.7 |
0.437 |
11.1 |
10" |
10.571 |
268.5 |
0.437 |
11.1 |
12" |
12.571 |
319.3 |
0.437 |
11.1 |
