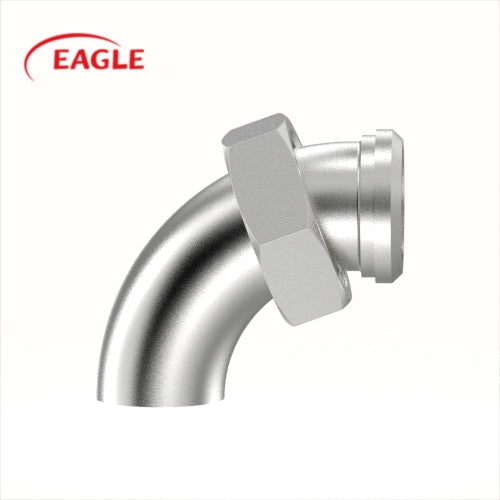

EAGLE ™ Sanitary Weld x Plain Bevel Seat 90 Degree Elbow (L2F)
Free shipping
On all orders over $199
Special offers
Regular sales and discounts
Easy returns
Hassle free returns policy
Chat facility
Talk to a real person
The EAGLE™ Sanitary Weld x Plain Bevel Seat 90 Degree Elbow (L2F) is a robust and versatile fitting designed to provide seamless directional changes in sanitary piping systems. Featuring a 90-degree bend, it enables efficient flow routing in tight spaces while maintaining optimal system performance and hygiene standards.
This elbow is engineered with a weld end on one side for permanent, secure connections and a plain bevel seat on the other for flexible integration with other components. Constructed from premium-grade stainless steel, it offers exceptional durability, corrosion resistance, and reliability, making it ideal for industries such as food and beverage processing, dairy, pharmaceuticals, and biotechnology.
The bevel seat design ensures a tight, leak-proof seal, even in high-pressure or high-temperature environments. Its precision-crafted interior minimizes turbulence and product buildup, promoting smooth flow and reducing the risk of contamination. The weld end ensures long-lasting connections, ideal for critical systems requiring durability and minimal maintenance.
Whether for new installations or system upgrades, the EAGLE™ Sanitary Weld x Plain Bevel Seat 90 Degree Elbow (L2F) provides a dependable solution for creating efficient and hygienic piping systems in demanding sanitary processing environments.
Size |
A |
B |
||
|
inch |
mm |
inch |
mm |
1" |
2.78 |
70.6 |
2.062 |
52.4 |
1.5" |
3.656 |
92.9 |
2.937 |
74.6 |
2" |
4.812 |
122.2 |
4.062 |
103.2 |
2.5" |
6.062 |
154.0 |
5.187 |
131.7 |
3" |
7.218 |
183.3 |
6.312 |
160.3 |
4" |
9.343 |
237.3 |
8.312 |
211.1 |
About Egle
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
The EAGLE™ Sanitary Weld x Plain Bevel Seat 90 Degree Elbow (L2F) is a robust and versatile fitting designed to provide seamless directional changes in sanitary piping systems. Featuring a 90-degree bend, it enables efficient flow routing in tight spaces while maintaining optimal system performance and hygiene standards.
This elbow is engineered with a weld end on one side for permanent, secure connections and a plain bevel seat on the other for flexible integration with other components. Constructed from premium-grade stainless steel, it offers exceptional durability, corrosion resistance, and reliability, making it ideal for industries such as food and beverage processing, dairy, pharmaceuticals, and biotechnology.
The bevel seat design ensures a tight, leak-proof seal, even in high-pressure or high-temperature environments. Its precision-crafted interior minimizes turbulence and product buildup, promoting smooth flow and reducing the risk of contamination. The weld end ensures long-lasting connections, ideal for critical systems requiring durability and minimal maintenance.
Whether for new installations or system upgrades, the EAGLE™ Sanitary Weld x Plain Bevel Seat 90 Degree Elbow (L2F) provides a dependable solution for creating efficient and hygienic piping systems in demanding sanitary processing environments.
Size |
A |
B |
||
|
inch |
mm |
inch |
mm |
1" |
2.78 |
70.6 |
2.062 |
52.4 |
1.5" |
3.656 |
92.9 |
2.937 |
74.6 |
2" |
4.812 |
122.2 |
4.062 |
103.2 |
2.5" |
6.062 |
154.0 |
5.187 |
131.7 |
3" |
7.218 |
183.3 |
6.312 |
160.3 |
4" |
9.343 |
237.3 |
8.312 |
211.1 |
