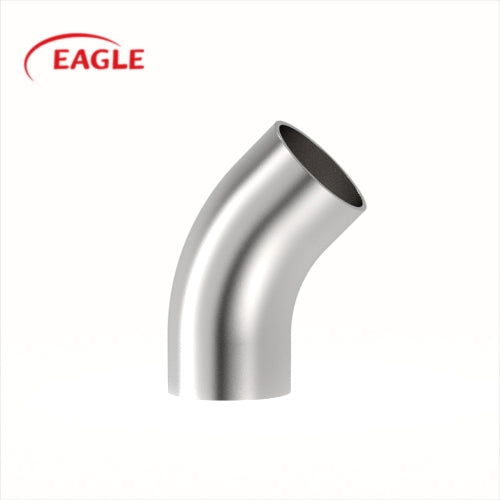

EAGLE ™ Sanitary Weld Long Elbow 45° With Tangent (L2KS)
Free shipping
On all orders over $199
Special offers
Regular sales and discounts
Easy returns
Hassle free returns policy
Chat facility
Talk to a real person
The Polished 45° Elbow with Tangents from Sanitube™ is available in both 304 & 316L stainless steel alloys. Welds are required at both ends in order to accommodate a 45° change in angle between separate runs of sanitary tubing. Tangents allow additional room while welding in place. Stainless steel material is resistant to corrosion and can withstand high temperatures. This product is manufactured in accordance with 3A Standards for sanitary process line applications including food & beverage industries.

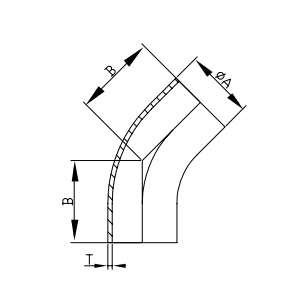

Size |
A |
B |
T |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
1.0" |
1.000 |
25.4 |
1.189 |
30.2 |
0.065 |
1.65 |
1.5" |
1.500 |
38.1 |
1.626 |
41.3 |
0.065 |
1.65 |
2.0" |
2.000 |
50.8 |
2.311 |
58.7 |
0.065 |
1.65 |
2.5" |
2.500 |
63.5 |
3.000 |
76.2 |
0.065 |
1.65 |
3.0" |
3.000 |
76.2 |
3.689 |
93.7 |
0.065 |
1.65 |
4.0" |
4.000 |
101.6 |
4.811 |
122.2 |
0.083 |
2.11 |
About Egle
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
The Polished 45° Elbow with Tangents from Sanitube™ is available in both 304 & 316L stainless steel alloys. Welds are required at both ends in order to accommodate a 45° change in angle between separate runs of sanitary tubing. Tangents allow additional room while welding in place. Stainless steel material is resistant to corrosion and can withstand high temperatures. This product is manufactured in accordance with 3A Standards for sanitary process line applications including food & beverage industries.
Size |
A |
B |
T |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
1.0" |
1.000 |
25.4 |
1.189 |
30.2 |
0.065 |
1.65 |
1.5" |
1.500 |
38.1 |
1.626 |
41.3 |
0.065 |
1.65 |
2.0" |
2.000 |
50.8 |
2.311 |
58.7 |
0.065 |
1.65 |
2.5" |
2.500 |
63.5 |
3.000 |
76.2 |
0.065 |
1.65 |
3.0" |
3.000 |
76.2 |
3.689 |
93.7 |
0.065 |
1.65 |
4.0" |
4.000 |
101.6 |
4.811 |
122.2 |
0.083 |
2.11 |
