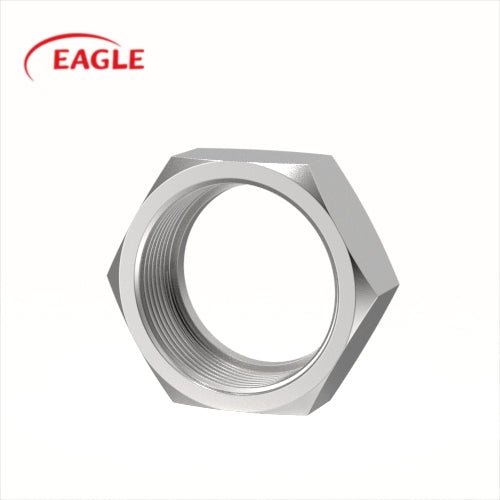

These nuts play a crucial role in securing threaded bevel seat ferrules, ensuring a tight and hygienic seal in applications such as food processing, pharmaceuticals, and the beverage industry.
The hexagonal shape of the nut provides a convenient gripping point for tightening or loosening, and it typically requires a wrench or a suitable tool for installation.
Bevel Seat Union Hex Nuts 13H usually has no contact with fluids, so stainless steel 304 will be enough to meet stringent sanitary and hygienic standards. If 316L Grade is required, pls contact sales@eaglefittings.com
|
Size |
A |
B |
||
|
|
inch |
mm |
inch |
mm |
|
1" |
1.812 |
46.0 |
0.906 |
23.0 |
|
1.5" |
2.406 |
61.1 |
0.968 |
24.6 |
|
2" |
3 |
76.2 |
1.062 |
27.0 |
|
2.5" |
3.594 |
91.3 |
1.187 |
30.1 |
|
3" |
4.188 |
106.4 |
1.281 |
32.5 |
|
4" |
5.438 |
138.1 |
1.5 |
38.1 |
