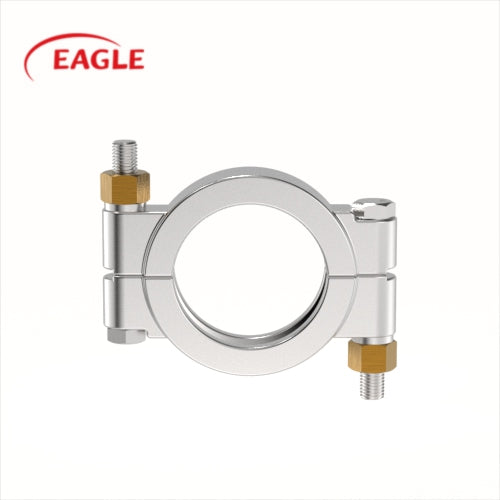

Sanitary Pressure Tri-Clamp is able to withstand higher pressure ratings than our standard single-pin heavy-duty clamp. Pressure ratings for this clamp vary depending on application processing temperatures and tubing dimensions. Please consult the reference chart below for specific information. If you need 316L Pressure Tri-Clamp, pls contact sales@ealgefittings.com for a quote.

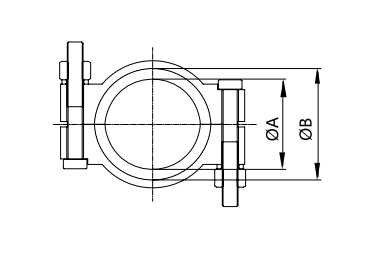

Size |
A |
B |
||
|
inch |
mm |
inch |
mm |
1"-1.5" |
1.748 |
44.4 |
2.046 |
53.6 |
2" |
2.276 |
57.8 |
2.578 |
67 |
2.5" |
2.811 |
71.4 |
3.110 |
80.6 |
3" |
3.307 |
84 |
3.640 |
94.2 |
3.5" |
3.898 |
99 |
4.299 |
109.2 |
4" |
4.331 |
110 |
4.744 |
122.2 |
4.5" |
4.843 |
123 |
5.244 |
133.2 |
6" |
6.118 |
155.4 |
6.632 |
170.4 |
About Egle
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
Sanitary Pressure Tri-Clamp is able to withstand higher pressure ratings than our standard single-pin heavy-duty clamp. Pressure ratings for this clamp vary depending on application processing temperatures and tubing dimensions. Please consult the reference chart below for specific information. If you need 316L Pressure Tri-Clamp, pls contact sales@ealgefittings.com for a quote.
Size |
A |
B |
||
|
inch |
mm |
inch |
mm |
1"-1.5" |
1.748 |
44.4 |
2.046 |
53.6 |
2" |
2.276 |
57.8 |
2.578 |
67 |
2.5" |
2.811 |
71.4 |
3.110 |
80.6 |
3" |
3.307 |
84 |
3.640 |
94.2 |
3.5" |
3.898 |
99 |
4.299 |
109.2 |
4" |
4.331 |
110 |
4.744 |
122.2 |
4.5" |
4.843 |
123 |
5.244 |
133.2 |
6" |
6.118 |
155.4 |
6.632 |
170.4 |
