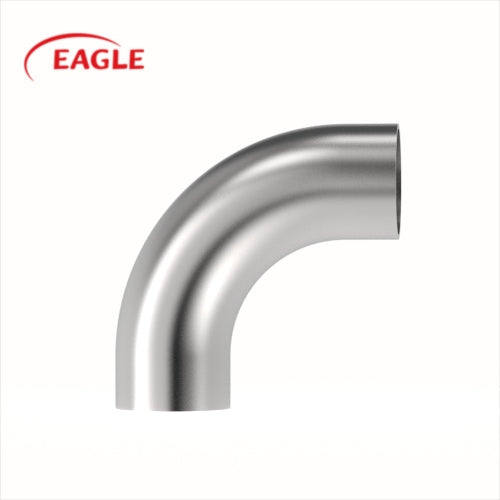

EAGLE ™ Sanitary Butt-Weld Long Elbow 90° With Tangent (L2S)
Free shipping
On all orders over $199
Special offers
Regular sales and discounts
Easy returns
Hassle free returns policy
Chat facility
Talk to a real person
Buttweld 90° elbows are available in both 304 and 316L stainless steel alloy. The product is manufactured in accordance to 3A Standards for sanitary-grade line process equipment in both the food and beverage industries. Outside diameter is available from 1/2 inch all the way to 6 inches. Butt welding creates a permanent connection that cannot be easily cleaned in place. Tangents allow for additional room to accomplish welding in place.
Size |
A |
B |
T |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
1.0" |
1.000 |
25.4 |
2.063 |
52.4 |
0.065 |
1.65 |
1.5" |
1.500 |
38.1 |
2.937 |
74.6 |
0.065 |
1.65 |
2.0" |
2.000 |
50.8 |
4.063 |
103.2 |
0.065 |
1.65 |
2.5" |
2.500 |
63.5 |
5.189 |
131.8 |
0.065 |
1.65 |
3.0" |
3.000 |
76.2 |
6.311 |
160.3 |
0.065 |
1.65 |
4.0" |
4.000 |
101.6 |
8.311 |
211.1 |
0.083 |
2.11 |
About Egle
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
Buttweld 90° elbows are available in both 304 and 316L stainless steel alloy. The product is manufactured in accordance to 3A Standards for sanitary-grade line process equipment in both the food and beverage industries. Outside diameter is available from 1/2 inch all the way to 6 inches. Butt welding creates a permanent connection that cannot be easily cleaned in place. Tangents allow for additional room to accomplish welding in place.
Size |
A |
B |
T |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
1.0" |
1.000 |
25.4 |
2.063 |
52.4 |
0.065 |
1.65 |
1.5" |
1.500 |
38.1 |
2.937 |
74.6 |
0.065 |
1.65 |
2.0" |
2.000 |
50.8 |
4.063 |
103.2 |
0.065 |
1.65 |
2.5" |
2.500 |
63.5 |
5.189 |
131.8 |
0.065 |
1.65 |
3.0" |
3.000 |
76.2 |
6.311 |
160.3 |
0.065 |
1.65 |
4.0" |
4.000 |
101.6 |
8.311 |
211.1 |
0.083 |
2.11 |
