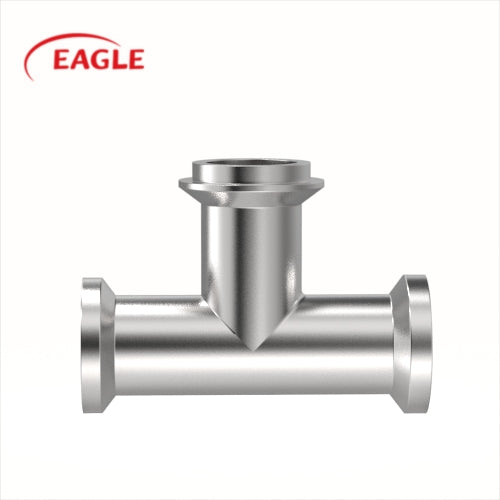

Sanitary Fittings offers the female X male sanitary tee I-Line fitting connection with outside diameter (OD) sizes from 1" to 4". Available in both 304 & 316L stainless steel options. Items are typically in stock, please call for item availability. Product is 3A Certified.
I-Line fittings have a male and female connections ensure the rigidity of your sanitary process line systems. This interlocking design allows for a safe, compression connection reducing the chance of an intermediate gasket from interfering with process line product. I-Line fittings are the most durable with regards to vibration, temperature, and pressure.
|
Size |
A |
B |
C |
|||
|
|
inch |
mm |
inch |
mm |
inch |
mm |
|
1" |
1.911 |
48.5 |
3.822 |
97.1 |
1.714 |
43.5 |
|
1.5" |
2.598 |
66.0 |
5.196 |
132.0 |
2.402 |
61.0 |
|
2" |
3.099 |
78.7 |
6.198 |
157.4 |
2.843 |
72.2 |
|
2.5" |
3.505 |
89.0 |
7.01 |
178.0 |
3.194 |
81.1 |
|
3" |
3.817 |
96.9 |
7.634 |
193.9 |
3.506 |
89.0 |
|
4" |
4.786 |
121.6 |
9.572 |
243.1 |
4.475 |
113.7 |
Size OD
Grade
