I-Line Female 90 Degree Elbow (2CI)

$102.40
No reviews

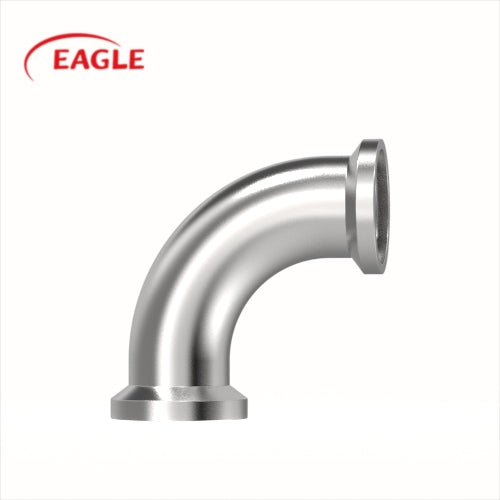

EAGLE™ I-Line 2CI Female 90 Degree Elbow - Sanitary Fittings
EAGLE

I-Line Female 90 Degree Elbow (2CI)

From $89.40

Interlocking female-female I-line elbow to accommodate 90 degree connections.



  • Sanitary Female I-Line Elbow
  • Available in 304 & 316L Stainless Steel
  • 3A Certified for sanitary-grade line process equipment

Product is 3A Certified and is available in both 304 & 316 Stainless Steel alloys.

I-Line fittings have metal, gasket, metal connections ensure rigidity of your sanitary process line systems. This interlocking design allows for a safe, compression connection reducing the chance of intermediate gasket from interfering with process line product. I-Line fittings are the most durable with regards to vibration, temperature, and pressure.

Dimension



NO.



Size

A

inch

mm

5330 0100

1"

2.286

58.1

5330 0150

1.5"

3.192

81.1

5330 0200

2"

4.036

102.5

5330 0250

2.5"

4.911

124.7

5330 0300

3"

5.723

145.4

5330 0400

4"

7.348

186.6


Size OD

  • 1"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
  • 4"

Grade

  • 304
