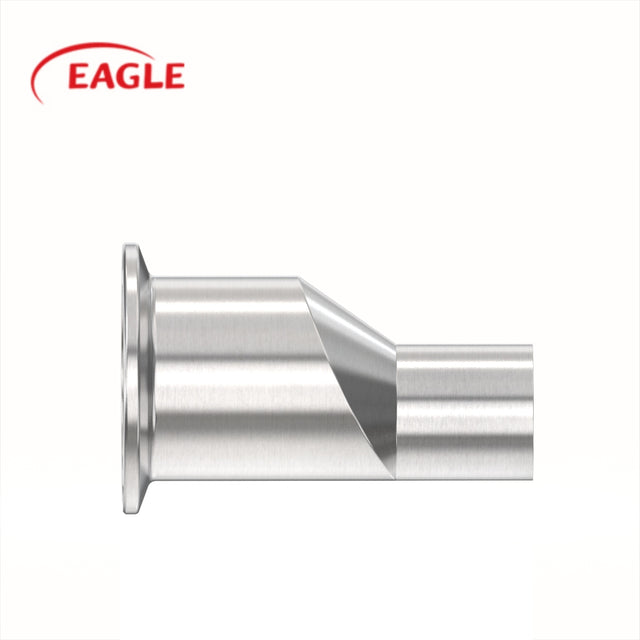

EAGLE ™ BPE DT-26 Long Concentric Reducer

Size

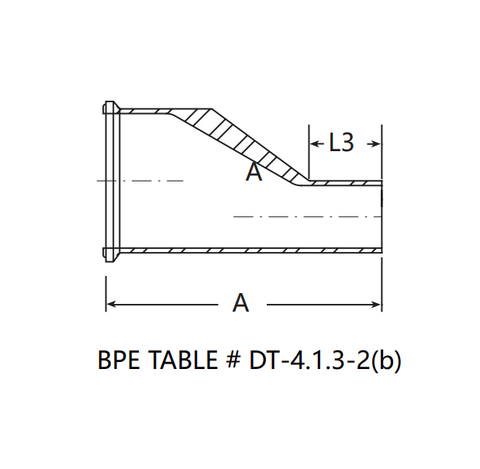

Dimensions

Overall Length, A, in

Overall Length, A,mm

Minimum O.D.Tangent, SmallEnd, L3, in.

Minimum O.D. Tangent, Small End, L3, mm

* 3 ⁄ 8 × 1 ⁄ 4

2.125

53.975

0.750

19.05

* 1 ⁄ 2 × 1 ⁄ 4

2.375

60.325

0.750

19.05

* 1 ⁄ 2 × 3 ⁄ 8

2.375

60.325

0.750

19.05

* 3 ⁄ 4 × 3 ⁄ 8

2.500

63.5

0.750

19.05

3 ⁄ 4 × 1 ⁄ 2

2.625

66.675

1.000

25.4

1 × 1 ⁄ 2

3.000

76.2

1.000

25.4

1 × 3 ⁄ 4

2.625

66.675

1.000

25.4

11 ⁄ 2 × 3 ⁄ 4

3.500

88.9

1.000

25.4

11 ⁄ 2 × 1

3.000

76.2

1.000

25.4

2 × 1

3.875

98.425

1.000

25.4

2 × 11 ⁄ 2

3.000

76.2

1.000

25.4

21 ⁄ 2 × 11 ⁄ 2

3.875

98.425

1.000

25.4

21 ⁄ 2 × 2

3.000

76.2

1.000

25.4

3 × 11 ⁄ 2

4.750

120.65

1.000

25.4

3 × 2

3.875

98.425

1.000

25.4

3 × 21 ⁄ 2

3.125

79.375

1.000

25.4

4 × 2

5.750

146.05

1.000

25.4

4 × 21 ⁄ 2

4.875

123.825

1.000

25.4

4 × 3

4.500

114.3

1.500

38.1

6 × 3

8.000

203.2

1.500

38.1

6 × 4

6.375

161.925

1.500

38.1
