BPE Weld / Tri-Clamp sanitary ferrule for joining process lines Additional room is provided on the tri-clamp ferrule to allow for orbital welding in-place. Available only in 316L Stainless Steel alloy. This product is typically in stock and ships on the same day as your order is placed. Please call for additional information.
All Bio-Pharmaceutical Equipment (BPE) fittings come individually sealed and capped along with Material Test Reports (MTRs) standard.
BPE Automated Weld Ferrules Part Numbers & Dimensions
Dimension
Size
Dimensions
Type
Ain.
Amm
Din.
Dmm
1 ⁄ 4
A
1.750
44.5
0.984
24.9
3 ⁄ 8
A
1.750
44.5
0.984
24.9
1 ⁄ 2
A
1.750
44.5
0.984
24.9
3 ⁄ 4
A
1.750
44.5
0.984
24.9
1
A
1.750
44.5
1.339
34.0
1
B
1.750
44.5
1.984
50.3
1 1 ⁄ 2
B
1.750
44.5
1.984
50.3
2
B
2.250
57.2
2.516
63.9
2 1 ⁄ 2
B
2.250
57.2
3.047
77.3
3
B
2.250
57.2
3.579
90.9
4
B
2.250
57.2
4.682
118.9
6
B
3.000
76.2
6.570
166.8
Your cart
EAGLE

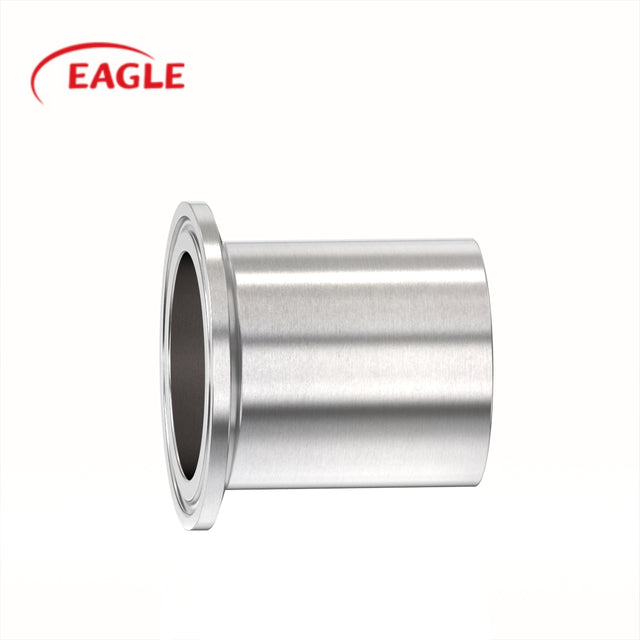

EAGLE ™ BPE DT-22 Clamp Ferrule
