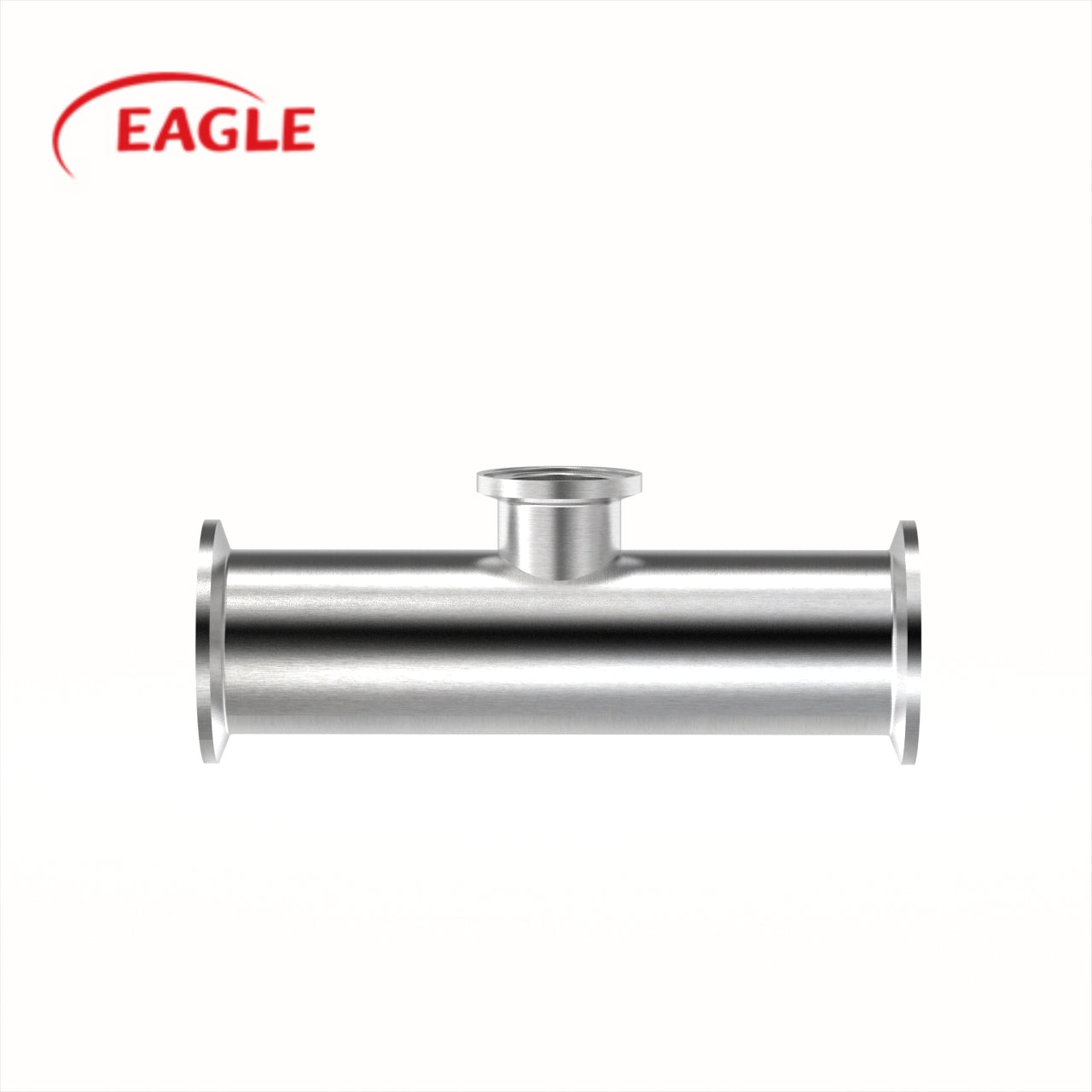

EAGLE ™ BPE DT-20 Reducing Tee Clamp End

$137.37

ASME BPE Standards for Electropolishing Bioprocessing Equipment
3A Certified for sanitary-grade line process equipment
Material Test Reports (MTR) available with every order

Dimension

Size	Dimensions
	A in.	A mm	B in.	B mm
3/8 × 1/4	2.250	57.2	1.000	25.4
1/2 × 1/4	2.375	60.3	1.000	25.4
1/2 × 3/8	2.375	60.3	1.000	25.4
3/4 × 1/4	2.500	63.5	1.000	25.4
3/4 × 3/8	2.500	63.5	1.000	25.4
3/4 × 1/2	2.500	63.5	1.000	25.4
* 1 × 1/4	2.625	66.7	1.125	28.6
* 1 × 3/8	2.625	66.7	1.125	28.6
* 1 × 1/2	2.625	66.7	1.125	28.6
* 1 × 3/4	2.625	66.7	1.125	28.6
11/2 × 1/2	2.875	73.0	1.375	34.9
11/2 × 3/4	2.875	73.0	1.375	34.9
11/2 × 1*	2.875	73.0	1.375	34.9
2 × 1/2	3.375	85.7	1.625	41.3
2 × 3/4	3.375	85.7	1.625	41.3
2 × 1*	3.375	85.7	1.625	41.3
2 × 11/2	3.375	85.7	1.625	41.3
21/2 × 1/2	3.625	92.1	1.875	47.6
21/2 × 3/4	3.625	92.1	1.875	47.6
21/2 × 1*	3.625	92.1	1.875	47.6
21/2 × 11/2	3.625	92.1	1.875	47.6
21/2 × 2	3.625	92.1	1.875	47.6
3 × 1/2	3.875	98.4	2.125	54.0
3 × 3/4	3.875	98.4	2.125	54.0
3 × 1*	3.875	98.4	2.125	54.0
3 × 11/2	3.875	98.4	2.125	54.0
3 × 2	3.875	98.4	2.125	54.0
3 × 21/2	3.875	98.4	2.125	54.0
4 × 1/2	4.750	120.7	2.625	66.7
4 × 3/4	4.750	120.7	2.625	66.7
4 × 1*	4.750	120.7	2.625	66.7
4 × 11/2	4.750	120.7	2.625	66.7
4 × 2	4.750	120.7	2.625	66.7
4 × 21/2	4.750	120.7	2.625	66.7
4 × 3	4.750	120.7	2.625	66.7
6 × 1/2	7.125	181.0	3.625	92.1
6 × 3/4	7.125	181.0	3.625	92.1
6 × 1 *	7.125	181.0	3.625	92.1
6 × 11/2	7.125	181.0	3.625	92.1
6 × 2	7.125	181.0	3.625	92.1
6 × 21/2	7.125	181.0	3.625	92.1
6 × 3	7.125	181.0	3.625	92.1
6 × 4	7.125	181.0	3.750	95.3

BPE DT-20 Reducing Tee Clamp End

EAGLE

EAGLE ™ BPE DT-20 Reducing Tee Clamp End

From $115.87

ASME BPE Standards for Electropolishing Bioprocessing Equipment
3A Certified for sanitary-grade line process equipment
Material Test Reports (MTR) available with every order

Dimension

Size	Dimensions
	A in.	A mm	B in.	B mm
3/8 × 1/4	2.250	57.2	1.000	25.4
1/2 × 1/4	2.375	60.3	1.000	25.4
1/2 × 3/8	2.375	60.3	1.000	25.4
3/4 × 1/4	2.500	63.5	1.000	25.4
3/4 × 3/8	2.500	63.5	1.000	25.4
3/4 × 1/2	2.500	63.5	1.000	25.4
* 1 × 1/4	2.625	66.7	1.125	28.6
* 1 × 3/8	2.625	66.7	1.125	28.6
* 1 × 1/2	2.625	66.7	1.125	28.6
* 1 × 3/4	2.625	66.7	1.125	28.6
11/2 × 1/2	2.875	73.0	1.375	34.9
11/2 × 3/4	2.875	73.0	1.375	34.9
11/2 × 1*	2.875	73.0	1.375	34.9
2 × 1/2	3.375	85.7	1.625	41.3
2 × 3/4	3.375	85.7	1.625	41.3
2 × 1*	3.375	85.7	1.625	41.3
2 × 11/2	3.375	85.7	1.625	41.3
21/2 × 1/2	3.625	92.1	1.875	47.6
21/2 × 3/4	3.625	92.1	1.875	47.6
21/2 × 1*	3.625	92.1	1.875	47.6
21/2 × 11/2	3.625	92.1	1.875	47.6
21/2 × 2	3.625	92.1	1.875	47.6
3 × 1/2	3.875	98.4	2.125	54.0
3 × 3/4	3.875	98.4	2.125	54.0
3 × 1*	3.875	98.4	2.125	54.0
3 × 11/2	3.875	98.4	2.125	54.0
3 × 2	3.875	98.4	2.125	54.0
3 × 21/2	3.875	98.4	2.125	54.0
4 × 1/2	4.750	120.7	2.625	66.7
4 × 3/4	4.750	120.7	2.625	66.7
4 × 1*	4.750	120.7	2.625	66.7
4 × 11/2	4.750	120.7	2.625	66.7
4 × 2	4.750	120.7	2.625	66.7
4 × 21/2	4.750	120.7	2.625	66.7
4 × 3	4.750	120.7	2.625	66.7
6 × 1/2	7.125	181.0	3.625	92.1
6 × 3/4	7.125	181.0	3.625	92.1
6 × 1 *	7.125	181.0	3.625	92.1
6 × 11/2	7.125	181.0	3.625	92.1
6 × 2	7.125	181.0	3.625	92.1
6 × 21/2	7.125	181.0	3.625	92.1
6 × 3	7.125	181.0	3.625	92.1
6 × 4	7.125	181.0	3.750	95.3

Size

3/4" x 1/2"
1" x 1/2"
1" x 3/4"
1 1/2" x 1/2"
1 1/2" x 3/4"
1 1/2" x 1"
2" x 1/2"
2" x 3/4"
2" x 1"
2" x 1 1/2"
2 1/2" x 1/2"
2 1/2" x 3/4"
2 1/2" x 1"
2 1/2" x 1 1/2"
2 1/2" x 2"
3" x 1/2"
3" x 3/4"
3" x 1"
3" x 1 1/2"
3" x 2"
3" x 2 1/2"
4" x 1/2"
4" x 3/4"
4" x 1"
4" x 1 1/2"
4" x 2"
4" x 2 1/2"
4" x 3"

Finish

15RA/ PM/ SF4
20RA/ PL/ SF1
