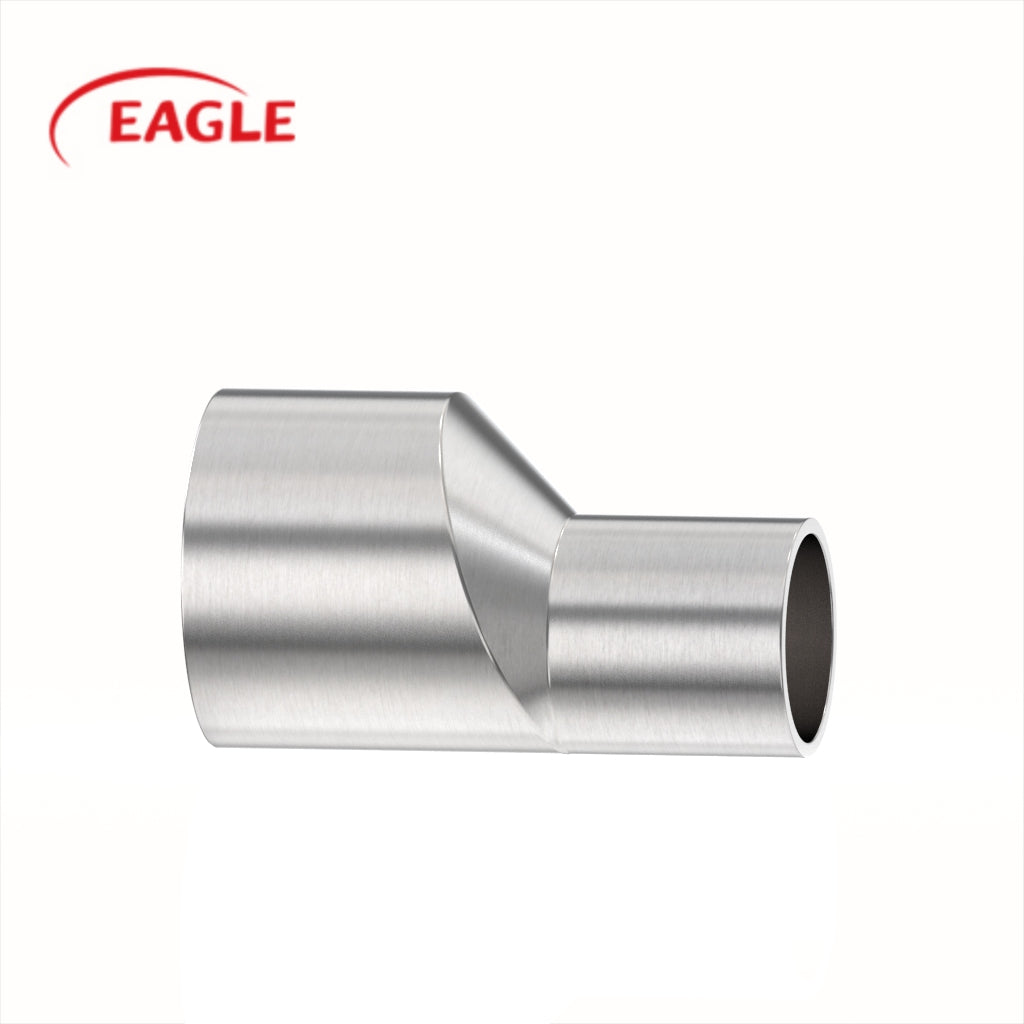

EAGLE ™ BPE DT-11 Butt-Weld Short Eccentric Reducer

$111.10
No reviews
EAGLE

EAGLE ™ BPE DT-11 Butt-Weld Short Eccentric Reducer

From $91.80

BPE polished butt weld short eccentric reducers for welded connection of sanitary process lines with varying sizes





The polished butt weld eccentric reducer is available in 316L stainless steel alloy. Buttweld ends accommodate the joining of two separate tube lines of different sizes. Stainless steel material is resistant to corrosion and can withstand high temperatures. This product is 3A certified for process line applications in the pharmaceutical industry.



Dimension

Size

Dimensions

Overall Length, A, in

Overall Length, A,mm

Minimum O.D.Tangent, Small End, L3, in.

Minimum O.D. Tangent, Small End, L3, mm

Minimum O.D. Tangent, Large End, L4, in.

Minimum O.D. Tangent, Large End, L4, mm

* 3/8×1/4

1.625

41.275

0.750

19.05

0.750

19.05

* 1/2×1/4

1.875

47.625

0.750

19.05

1.000

25.4

* 1/2×3/8

1.875

47.625

0.750

19.05

1.000

25.4

* 3/4×3/8

2.000

50.8

0.750

19.05

1.000

25.4

3/4×1/2

2.125

53.975

1.000

25.4

1.000

25.4

1×1/2

2.500

63.5

1.000

25.4

1.000

25.4

1×3/4

2.125

53.975

1.000

25.4

1.000

25.4

11/2×3/4

3.000

76.2

1.000

25.4

1.000

25.4

11/2×1

2.500

63.5

1.000

25.4

1.000

25.4

2×1

3.375

85.725

1.000

25.4

1.000

25.4

2×11/2

2.500

63.5

1.000

25.4

1.000

25.4

21/2×11/2

3.375

85.725

1.000

25.4

1.000

25.4

21/2×2

2.500

63.5

1.000

25.4

1.000

25.4

3×11/2

4.250

107.95

1.000

25.4

1.500

38.1

3×2

3.375

85.725

1.000

25.4

1.500

38.1

3×21/2

2.625

66.675

1.000

25.4

1.500

38.1

4×2

5.125

130.175

1.000

25.4

1.500

38.1

4×21/2

4.250

107.95

1.000

25.4

1.500

38.1

4×3

3.875

98.425

1.500

38.1

1.500

38.1

6×3

7.250

184.15

1.500

38.1

2.000

50.8

6×4

5.625

142.875

1.500

38.1

2.000

50.8

Size

  • 3/4" x 1/2"
  • 1" x 1/2"
  • 1" x 3/4"
  • 1 1/2" x 3/4"
  • 1 1/2" x 1"
  • 2" x 1"
  • 2" x 1 1/2"
  • 2 1/2" x 1 1/2"
  • 2 1/2" x 2"
  • 3" x 1 1/2"
  • 3" x 2"
  • 3" x 2 1/2"
  • 4" x 2"
  • 4" x 2 1/2"
  • 4" x 3"
  • 6" x 4"

Finish

  • 15RA/ PM/ SF4
  • 20RA/ PL/ SF1
