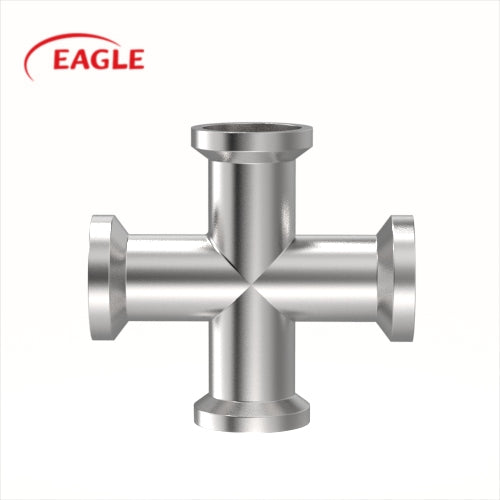

EAGLE™ I-Line 9I Female Ends Cross

$186.70
EAGLE™ I-Line 9I Female Ends Cross - Sanitary Fittings
EAGLE

EAGLE™ I-Line 9I Female Ends Cross

From $186.70

Female Ends Cross in sanitary process lines.


  • Female Ends Sanitary Cross
  • Available in 304 & 316L Stainless Steel
  • 3A Certified for sanitary-grade line process equipment

Sanitary Fittings offers the female ends sanitary cross I-Line fitting connection with outside diameter (OD) sizes from 1" to 4". Available in both 304 & 316L stainless steel options. Items are typically in stock, please call for item availability. Product is 3A Certified.

I-Line fittings have a male and female connections ensure the rigidity of your sanitary process line systems. This interlocking design allows for a safe, compression connection reducing the chance of an intermediate gasket from interfering with process line product. I-Line fittings are the most durable with regards to vibration, temperature, and pressure.

Dimension


Size

A

B



inch

mm

inch

mm

1"

1.911

48.5

3.822

97.1

1.5"

2.598

66.0

5.196

132.0

2"

3.099

78.7

6.198

157.4

2.5"

3.505

89.0

7.01

178.0

3"

3.817

96.9

7.634

193.9

4"

4.786

121.6

9.572

243.1



Size OD

  • 1"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
  • 4"

Grade

  • 304
  • 316L
