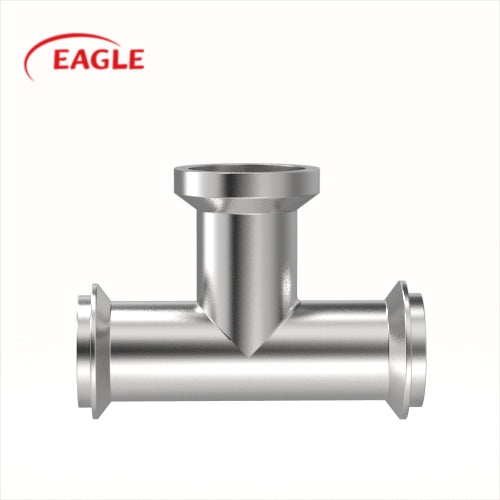

Sanitary Fittings offers the male X female sanitary tee I-Line fitting connection with outside diameter (OD) sizes from 1" to 4". Available in both 304 & 316L stainless steel options. Items are typically in stock, please call for item availability. Product is 3A Certified.
I-Line fittings have a male and female connections ensure the rigidity of your sanitary process line systems. This interlocking design allows for a safe, compression connection reducing the chance of an intermediate gasket from interfering with process line product. I-Line fittings are the most durable with regards to vibration, temperature, and pressure.
|
Size |
A |
B |
C |
|||
|
|
inch |
mm |
inch |
mm |
inch |
mm |
|
1" |
1.714 |
43.5 |
3.428 |
87.1 |
1.911 |
48.5 |
|
1.5" |
2.402 |
61.0 |
4.804 |
122.0 |
2.598 |
66.0 |
|
2" |
2.843 |
72.2 |
5.686 |
144.4 |
3.099 |
78.7 |
|
2.5" |
3.194 |
81.1 |
6.388 |
162.2 |
3.505 |
89.0 |
|
3" |
3.506 |
89.0 |
7.012 |
178.1 |
3.817 |
96.9 |
|
4" |
4.475 |
113.7 |
8.95 |
227.3 |
4.786 |
121.6 |
Size OD
Grade
