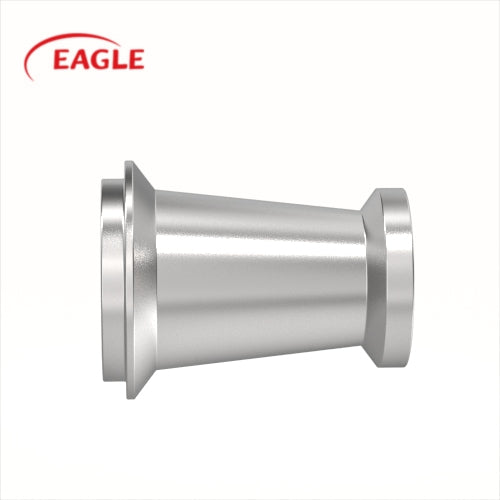

Sanitary Fittings offers the male x female sanitary reducer I-Line fitting connection with outside diameter (OD) sizes from 1" to 4". Available in both 304 & 316L stainless steel options. Items are typically in stock, please call for item availability. Product is 3A Certified.
I-Line fittings have a male and female connections ensure the rigidity of your sanitary process line systems. This interlocking design allows for a safe, compression connection reducing the chance of an intermediate gasket from interfering with process line product. I-Line fittings are the most durable with regards to vibration, temperature, and pressure.
|
Size |
A |
|
|
|
inch |
mm |
|
1.5"x1" |
3.13 |
79.5 |
|
2"x1.5" |
3.09 |
78.5 |
|
2.5"x2" |
3.28 |
83.3 |
|
3"x2" |
5.38 |
136.6 |
|
3"x2.5" |
3.44 |
87.4 |
|
4"x3" |
5.66 |
143.8 |
Size OD
Grade
