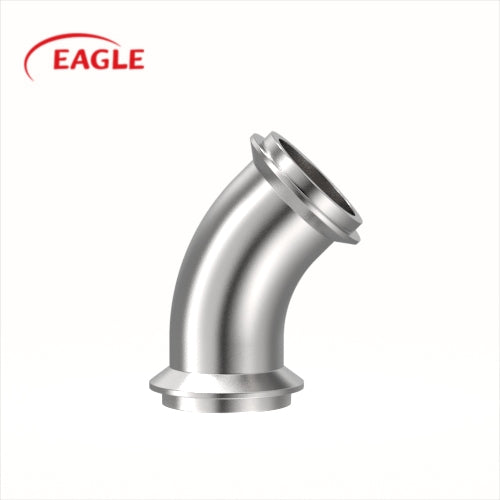

Sanitary Fittings offers the 45° male elbow I-Line fitting connection with outside diameter (OD) sizes from 1" to 4". Available in both 304 & 316L stainless steel options. Items are typically in stock, please call for item availability. Product is 3A Certified.
I-Line fittings have a male and female connections ensure the rigidity of your sanitary process line systems. This interlocking design allows for a safe, compression connection reducing the chance of an intermediate gasket from interfering with process line product. I-Line fittings are the most durable with regards to vibration, temperature, and pressure.
Size |
A |
|
|
inch |
mm |
1" |
1.214 |
30.8 |
1.5" |
1.526 |
38.8 |
2" |
2.03 |
51.6 |
2.5" |
2.412 |
61.3 |
3" |
2.787 |
70.8 |
4" |
3.537 |
89.8 |
