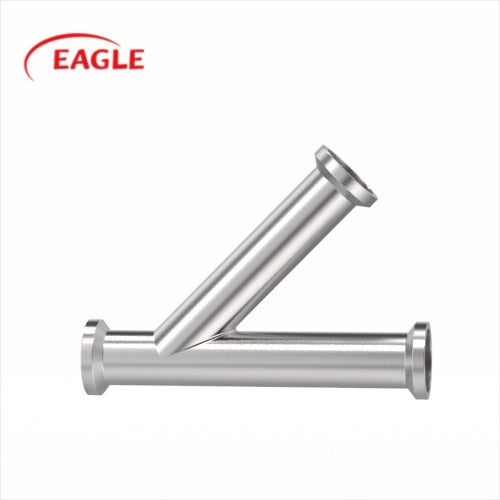

Female Ends Lateral Wye in sanitary process lines.
- Female Ends Lateral Wye
- Available in 304 & 316L Stainless Steel
- 3A Certified for sanitary-grade line process equipment
Sanitary Fittings offers the female ends lateral wye I-Line fitting connection with outside diameter (OD) sizes from 1" to 4". Available in both 304 & 316L stainless steel options. Items are typically in stock, please call for item availability. Product is 3A Certified.
I-Line fittings have a male and female connections ensure the rigidity of your sanitary process line systems. This interlocking design allows for a safe, compression connection reducing the chance of an intermediate gasket from interfering with process line product. I-Line fittings are the most durable with regards to vibration, temperature, and pressure.
Dimension
Size
|
A
|
B
|
|
inch
|
mm
|
inch
|
mm
|
1"
|
1.786
|
45.4
|
5.786
|
147.0
|
1.5"
|
2.132
|
54.1
|
7.132
|
181.1
|
2"
|
2.656
|
67.5
|
8.156
|
207.2
|
2.5"
|
2.661
|
67.6
|
9.661
|
245.4
|
3"
|
3.103
|
78.8
|
10.103
|
256.6
|
4"
|
3.408
|
86.6
|
12.148
|
308.5
|
