EAGLE ™ BPE DT-11 Butt- Weld Short Concentric Reducer

$79.00
EAGLE

EAGLE ™ BPE DT-11 Butt- Weld Short Concentric Reducer

From $66.50

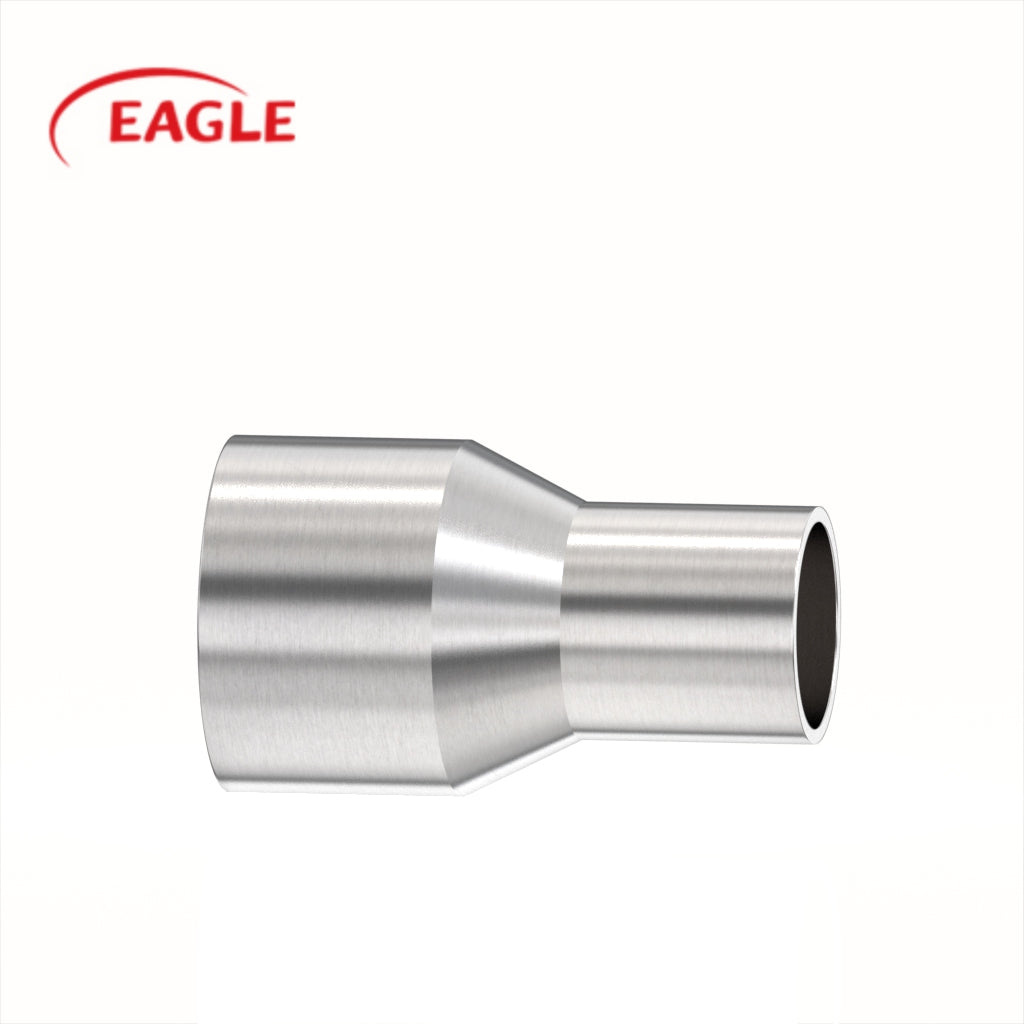

BPE sanitary short weld concentric reducer connects stainless steel tubes of alternate sizes



The Polished BPE Short Concentric Reducer is available in 316L stainless steel alloy with option electropolish finishing. Butt-weld ends to accommodate the joining of two separate tube lines of different sizes. Stainless steel material is resistant to corrosion and can withstand high temperatures. This product is ASME, 3A certified for bio-process line applications in the pharmaceutical industry.



Dimension



Size

Dimensions

Overall Length, A, in

Overall Length, A, mm

Minimum O.D. Tangent, Small End, L3, in.

Minimum O.D.Tangent, SmallEnd, L3, mm

Minimum O.D.Tangent, LargeEnd, L4, in.

Minimum O.D. Tangent, Large End, L4, mm.

*3 /8 × 1 /4

1.625

41.275

0.750

19.05

0.750

19.05

*1 /2 × 1 /4

1.875

47.625

0.750

19.05

1.000

25.4

*1 /2 × 3 /8

1.875

47.625

0.750

19.05

1.000

25.4

*3 /4 × 3 /8

2.000

50.8

0.750

19.05

1.000

25.4

3 /4 × 1 /2

2.125

53.975

1.000

25.4

1.000

25.4

1 × 1 /2

2.500

63.5

1.000

25.4

1.000

25.4

1 × 3 /4

2.125

53.975

1.000

25.4

1.000

25.4

1 1 /2 × 3 /4

3.000

76.2

1.000

25.4

1.000

25.4

11 /2 × 1

2.500

63.5

1.000

25.4

1.000

25.4

2 × 1

3.375

85.725

1.000

25.4

1.000

25.4

2 × 11 /2

2.500

63.5

1.000

25.4

1.000

25.4

21 /2 × 11 /2

3.375

85.725

1.000

25.4

1.000

25.4

21 /2 × 2

2.500

63.5

1.000

25.4

1.000

25.4

3 × 11 /2

4.250

107.95

1.000

25.4

1.500

38.1

3 × 2

3.375

85.725

1.000

25.4

1.500

38.1

3 × 21 /2

2.625

66.675

1.000

25.4

1.500

38.1

4 × 2

5.125

130.175

1.000

25.4

1.500

38.1

4 × 21 /2

4.250

107.95

1.000

25.4

1.500

38.1

4 × 3

3.875

98.425

1.500

38.1

1.500

38.1

6 × 3

7.250

184.15

1.500

38.1

2.000

50.8

6 × 4

5.625

142.875

1.500

38.1

2.000

50.8

Size

  • 3/4" x 1/2"
  • 1" x 1/2"
  • 1" x 3/4"
  • 1 1/2" x 3/4"
  • 1 1/2" x 1"
  • 2" x 1"
  • 2" x 1 1/2"
  • 2 1/2" x 1 1/2"
  • 2 1/2" x 2"
  • 3" x 1 1/2"
  • 3" x 2"
  • 3" x 2 1/2"
  • 4" x 2"
  • 4" x 2 1/2"
  • 4" x 3"
  • 6" x 3"
  • 6" x 4"

Finish

  • 15RA/ PM/ SF4
  • 20RA/ PL/ SF1
View product
