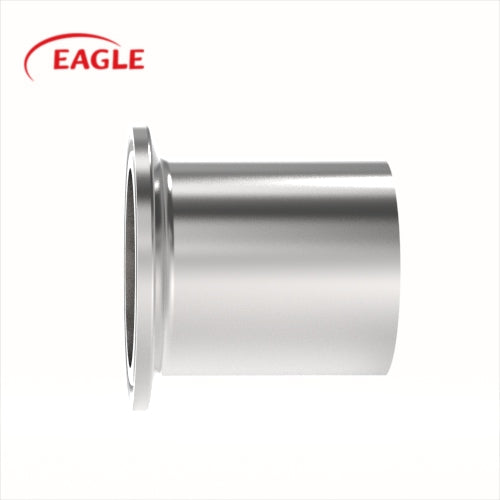

EAGLE™ 3A TL14AM7 Tri-Clamp Automatic Weld Ferrule
Free shipping
On all orders over $199
Special offers
Regular sales and discounts
Easy returns
Hassle free returns policy
Chat facility
Talk to a real person
Additional room is provided on the tri-clamp ferrule to allow for orbital welding in-place. Available only in 316L Stainless Steel alloy. This product is typically in stock and ships on the same day as your order is placed. Please call for additional information.

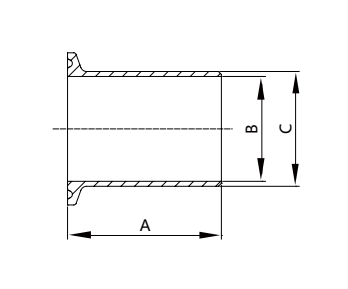

Size |
A |
B |
C |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
0.5" |
1.75 |
44.4 |
0.37 |
9.4 |
0.5 |
12.7 |
0.75 |
1.75 |
44.4 |
0.62 |
15.7 |
0.75 |
19.05 |
1" |
1.75 |
44.4 |
0.87 |
22.1 |
1 |
25.4 |
1.5" |
1.75 |
44.4 |
1.37 |
34.8 |
1.5 |
38.1 |
2" |
2.25 |
57.1 |
1.87 |
47.5 |
2 |
50.8 |
2.5" |
2.25 |
57.1 |
2.37 |
60.2 |
2.5 |
63.5 |
3" |
2.25 |
57.1 |
2.87 |
72.9 |
3 |
76.2 |
4" |
2.25 |
57.1 |
3.834 |
97.4 |
4 |
101.6 |
6" |
3 |
76.2 |
5.782 |
146.9 |
6 |
152.4 |
About Egle
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
Additional room is provided on the tri-clamp ferrule to allow for orbital welding in-place. Available only in 316L Stainless Steel alloy. This product is typically in stock and ships on the same day as your order is placed. Please call for additional information.
Size |
A |
B |
C |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
0.5" |
1.75 |
44.4 |
0.37 |
9.4 |
0.5 |
12.7 |
0.75 |
1.75 |
44.4 |
0.62 |
15.7 |
0.75 |
19.05 |
1" |
1.75 |
44.4 |
0.87 |
22.1 |
1 |
25.4 |
1.5" |
1.75 |
44.4 |
1.37 |
34.8 |
1.5 |
38.1 |
2" |
2.25 |
57.1 |
1.87 |
47.5 |
2 |
50.8 |
2.5" |
2.25 |
57.1 |
2.37 |
60.2 |
2.5 |
63.5 |
3" |
2.25 |
57.1 |
2.87 |
72.9 |
3 |
76.2 |
4" |
2.25 |
57.1 |
3.834 |
97.4 |
4 |
101.6 |
6" |
3 |
76.2 |
5.782 |
146.9 |
6 |
152.4 |
