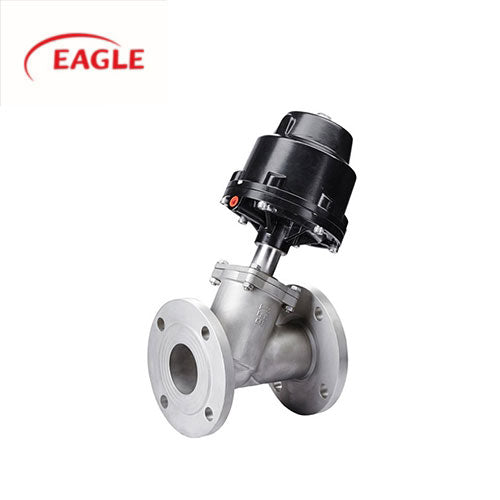

EAGLE™ 3A Angle Seat Valve (Bolted Bonnet)

$999.99
No reviews
EAGLE™ 3A Angle Seat Valve (Bolted Bonnet) - Sanitary Fittings
EAGLE

EAGLE™ 3A Angle Seat Valve (Bolted Bonnet)

$999.99

Shut off gaseous or liquid media in pipe systems with Angle Seat Valve

  • Bolted Bonnet Angle Seat Valve
  • SUS316L
  • Working Pressure 0-16 Bar
  • Medium Temp. -10℃~180℃ (Neutral Gas/Air)
  • PTFE Sealing

Angle seat valve features an open or closed position display for real-time monitoring. Its external pneumatic pilot extends service life with low maintenance. A self-adjusting sealing gland enhances performance, while the angle seat structure ensures a large flow rate and compact design. The valve exhibits minimal flow resistance, eliminating water hammer. Its Y-type design increases flow by 30%, ensuring longevity and seat automatic calibration. The cylinder's stainless steel or PA construction meets harsh environment needs. The valve's versatile installation at any position and 360-degree rotation offer adaptability in various setups. In conclusion, this innovative valve excels in performance, durability, and versatility for industrial applications.

Dimension

Size Actuator L C F D D1 D2 A H B N-Ød
2 1/2" Ø125 203 18 3 180 145 120 275 318 168 4-Ø18
3" Ø125 241 20 3 195 160 135 302 345 168 8-Ø18
3" Ø160 241 20 3 195 160 135 330 380 220 8-Ø18
4" Ø160 254 20 3 215 180 155 338 395 220 8-Ø18

Technical Support





OD Size

  • 2 1/2"
  • 3"(125 Actuator)
  • 3"(160 Actuator)
  • 4"

Grade

  • 316L
