EAGLE™ 3A 31WMP Clamp Reducing Ferrule

$86.60
No reviews
EAGLE™ 3A 31WMP Clamp Reducing Ferrule - Sanitary Fittings
EAGLE

EAGLE™ 3A 31WMP Clamp Reducing Ferrule

From $40.50

Reducing butt-weld tri-clamp ferrules connect sanitary process lines with tri-clamp, weld ends of different sizes



Stainless steel design is offered in both 304 and 316L alloy options. Sizes for this product range from 1/2 inch all the way up to 12 inches. For joining clamp fittings to welded ends. Orbital weld is recommended to ensure proper connectivity, tri-clamp connections finish this process line.
Recommended products include clamp gaskets and single-pin, heavy duty clamps.

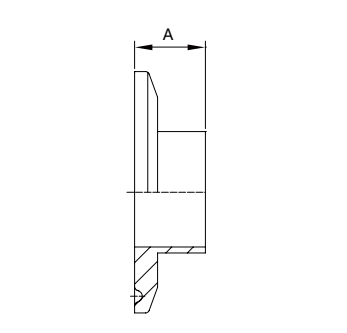

Dimension

size

A



inch

mm

0.75"×0.5"

0.5

12.7

1"×0.5"

0.5

12.7

1"×0.75"

0.5

12.7

1.5"×1"

0.5

12.7

1.5"×0.5"

0.5

12.7

1.5"×0.75"

0.5

12.7

2"×1"

0.5

12.7

2"×1.5"

0.5

12.7

2.5"×2"

0.5

12.7

3"×2"

0.5

12.7

4"×3"

0.625

15.9

Size

  • 3/4" x 1/2"
  • 1" x 1/2"
  • 1" x 3/4"
  • 1 1/2" x 1/2"
  • 1 1/2" x 3/4"
  • 1 1/2" x 1"
  • 2" x 1"
  • 2" x 1 1/2"
  • 2 1/2" x 2"
  • 3" x 2"
  • 4" X 2"
  • 4" x 3"

Grade

  • SS316L
  • SS304
