EAGLE™ 3A 28AMP 45° Clamp End Lateral WYE

$257.90
No reviews
EAGLE™ 3A 28AMP 45° Clamp End Lateral WYE - Sanitary Fittings
EAGLE

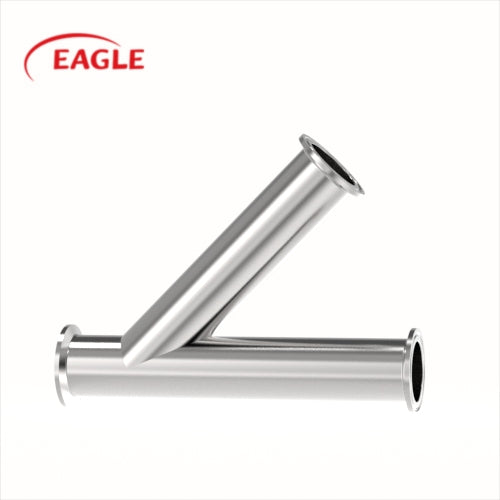

EAGLE™ 3A 28AMP 45° Clamp End Lateral WYE

From $112.90

Sanitary Stainless Steel Clamp Lateral for joining separate process lines at 45-degree angle



Clamp Laterals are available in both 304 and 316L stainless steel alloys. Clamp adapters such as the single pin heavy duty clamp with wing nut or bolted clamp along with rubber gaskets should be used to properly secure joining ends.

This product is 3A certified for sanitary-grade line process equipment.

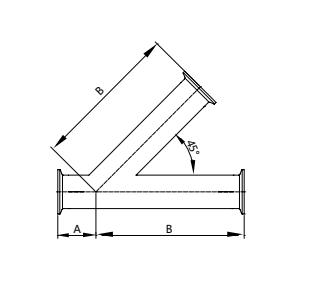

Dimension

Size

A

B



inch

mm

inch

mm

0.5"

1.5

38.1

5.5

139.7

0.75"

1.5

38.1

5.5

139.7

1"

1.5

38.1

5.5

139.7

1.5"

1.687

42.8

6.688

169.9

2"

2.125

54.0

7.625

193.7

2.5"

2

50.8

9

228.6

3"

2.375

60.3

9.375

238.1

4"

2.687

68.2

11.375

288.9

6"

4.375

111.1

13.25

336.5

Size

  • 3/4"
  • 1"
  • 1 1/2"
  • 2"
  • 2 1/2"
  • 3"
  • 4"
  • 6"

Grade

  • SS316L
  • SS304
