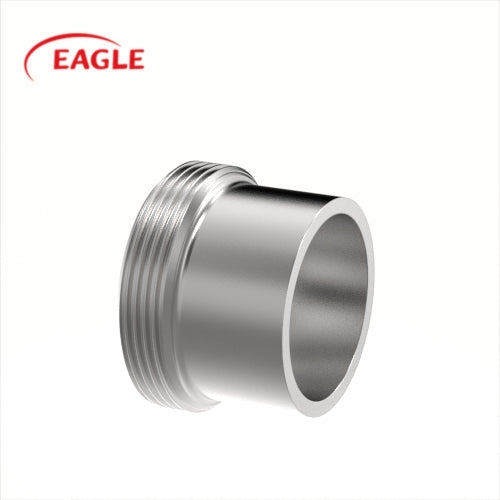

EAGLE™ 3A 15W Heavy Wall Tank Threaded Bevel Seat Ferrules
This 3A standard fitting is a high-performance food-grade stainless steel connector designed for industries requiring superior hygiene and durability. Featuring a heavy wall design, it delivers exceptional pressure resistance, making it ideal for tank connections, sanitary pipeline systems, and industrial fluid handling equipment, while ensuring excellent sealing performance and corrosion resistance.
Size |
A |
B |
C |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
1" |
1.5 |
38.1 |
0.87 |
22.1 |
1.16 |
29.5 |
1.5" |
1.625 |
41.3 |
1.37 |
34.8 |
1.676 |
42.6 |
2" |
1.75 |
44.4 |
1.87 |
47.5 |
2.192 |
55.7 |
2.5" |
1.75 |
44.4 |
2.37 |
60.2 |
2.708 |
68.8 |
3" |
1.812 |
46.0 |
2.87 |
72.9 |
3.224 |
81.9 |
4" |
2.125 |
54.0 |
3.834 |
97.4 |
4.256 |
108.1 |
