DT-24 180° Bottom Outlet Clamp Use Point

$449.00
No reviews
EAGLE

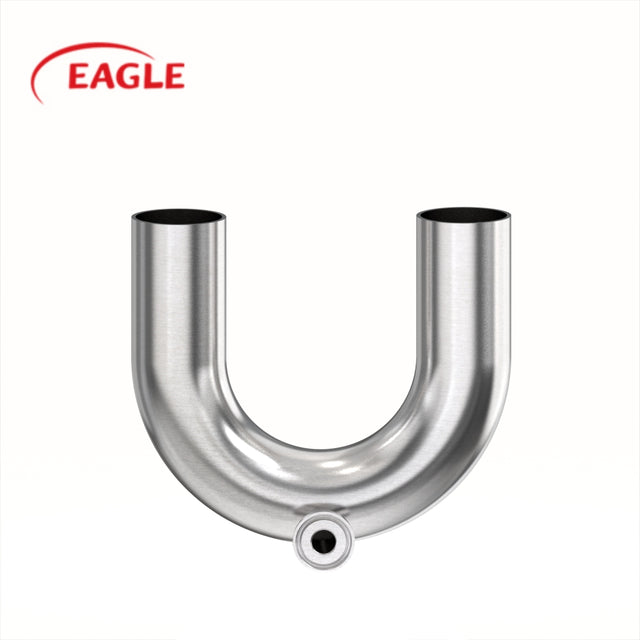

DT-24 180° Bottom Outlet Clamp Use Point

From $449.00

Provide access to product material with Bio-Pharm Bottom-Outlet Use-Point

BPE use-points are available in 316L stainless steel alloy with either 20Ra or 15Ra Surface Finish.  This product is 3A certified for sanitary-grade processing within the pharmaceutical industry.

ASME Certified, Bioprocessing Equipment (BPE). All products come stamped with heat lot number and associated Material Test Reports (MTRs).

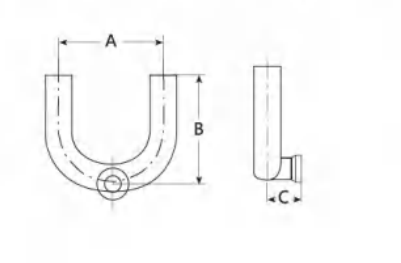

Dimension



Size

Dimensions



A in.

A mm

B in.

B mm

C in.

C mm

3 ⁄ 4 × 1 ⁄ 2

4.500

114.3

3.000

76.2

0.875

22.2

3 ⁄ 4 × 3 ⁄ 4

4.500

114.3

3.000

76.2

0.875

22.2

1 × 1 ⁄ 2

3.000

76.2

3.000

76.2

1.062

26.9

11 ⁄ 2 × 1 ⁄ 2

4.500

114.3

4.500

114.3

1.312

33.3

2 × 1 ⁄ 2

6.000

152.4

5.000

127.0

1.562

39.7

21 ⁄ 2 × 1 ⁄ 2

7.500

190.5

5.750

146.1

1.812

46

3 × 1 ⁄ 2

9.000

228.6

6.500

165.1

2.062

52.4

4 × 1 ⁄ 2

12.000

304.8

8.500

215.9

2.562

65

Size

  • 3/4" x 1/2"
  • 1" x 1/2"
  • 1" x 3/4”
  • 1 1/2" x 1/2"
  • 1 1/2" x 3/4"
  • 1 1/2" x 1"
  • 2" x 1/2"
  • 2" x 3/4"
  • 2" x 1"
  • 2" x 1 1/2"
  • 2 1/2" x 1/2"
  • 2 1/2" x 3/4"
  • 2 1/2" x 1"
  • 2 1/2" x 1 1/2"
  • 2 1/2" x 2"
  • 3" x 1/2"
  • 3" x 3/4"
  • 3" x 1"
  • 3" x 1 1/2"

Finish

  • 20RA/ PL/ SF1
  • 15RA/ PL/ SF1
