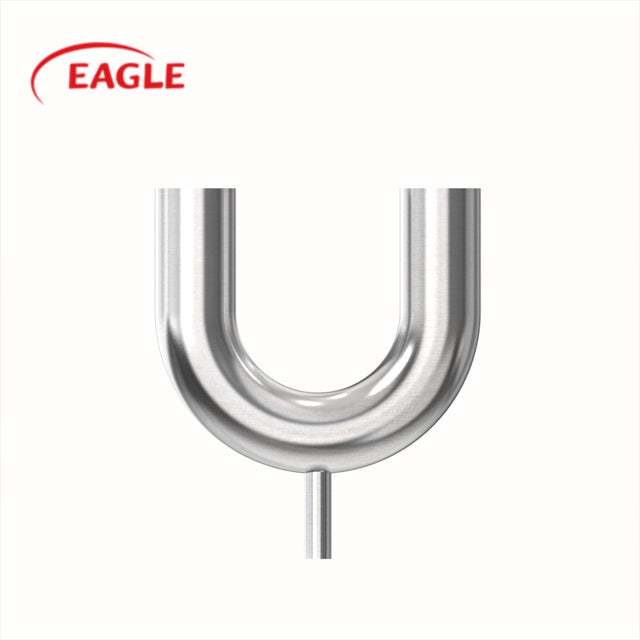

EAGLE™ DT-23 180° Bottom Outlet Weld Use Point

$449.00
EAGLE

EAGLE™ DT-23 180° Bottom Outlet Weld Use Point

From $449.00

Provide access to product material with Bio-Pharm Bottom-Outlet Use-Point

BPE use-points are available in 316L stainless steel alloy with either 20Ra or 15Ra Surface Finish.  This product is 3A certified for sanitary-grade processing within the pharmaceutical industry.

Bioprocessing Equipment (BPE). All products come stamped with heat lot number and associated Material Test Reports (MTRs).

Dimension



Size

Dimensions

A in.

A mm

B in.

B mm

C in.

C mm

3/4 × 1/2

4.500

114.3

3.000

76.2

1.875

47.6

3/4 × 3/4

4.500

114.3

3.000

76.2

1.875

47.6

1 × 1/2

3.000

76.2

3.000

76.2

2.062

52.4

11/2 × 1/2

4.500

114.3

4.500

114.3

2.312

58.7

2 × 1/2

6.000

152.4

5.000

127.0

2.562

65.1

21/2 × 1/2

7.500

190.5

5.750

146.1

2.812

71.4

3 × 1/2

9.000

228.6

6.500

165.1

3.062

77.8

4 × 1/2

12.000

304.8

8.500

215.9

3.562

90.5


Size

  • 3/4" x 1/2"
  • 1" x 1/2"
  • 1" x 3/4”
  • 1 1/2" x 1/2"
  • 1 1/2" x 3/4"
  • 1 1/2" x 1"
  • 2" x 1/2"
  • 2" x 3/4"
  • 2" x 1"
  • 2" x 1 1/2"
  • 2 1/2" x 1/2"
  • 2 1/2" x 3/4"
  • 2 1/2" x 1"
  • 2 1/2" x 1 1/2"
  • 2 1/2" x 2"
  • 3" x 1/2"
  • 3" x 3/4"
  • 3" x 1"
  • 3" x 1 1/2"

Finish

  • 20RA/ PL/ SF1
  • 15RA/ PL/ SF1
