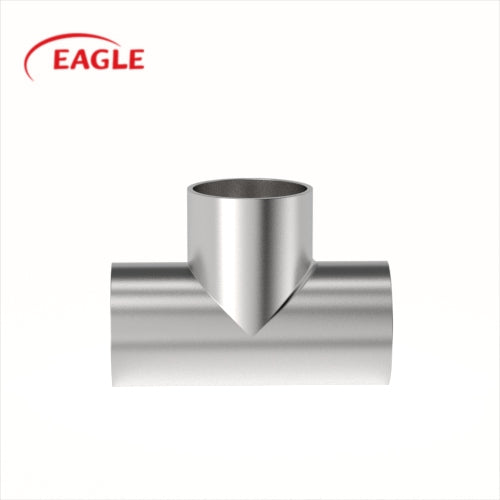

Sanitary Short Butt-Weld Tee is available in multiple tube OD sizes and both 304 and 316L stainless steel alloys. This product meets 3A sanitary standards for use in food, beverage and dairy line processing equipment and systems.
Connection requirements: Butt Weld.
Weld fittings are designed for permanent installation where clean in place methods are employed for proper line maintenance.

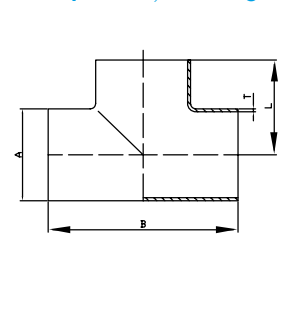

Size |
A |
B |
L |
T |
||||
|
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
1.0" |
1.00 |
25.4 |
2.252 |
57.2 |
1.126 |
28.6 |
0.065 |
1.65 |
1.5" |
1.50 |
38.1 |
3.315 |
84.2 |
1.657 |
42.1 |
0.065 |
1.65 |
2.0" |
2.00 |
50.8 |
4.126 |
104.8 |
2.063 |
52.4 |
0.065 |
1.65 |
2.5" |
2.50 |
63.5 |
4.685 |
119.0 |
2.343 |
59.5 |
0.065 |
1.65 |
3.0" |
3.00 |
76.2 |
5.189 |
131.8 |
2.594 |
65.9 |
0.065 |
1.65 |
4.0" |
4.00 |
101.6 |
6.874 |
174.6 |
3.437 |
87.3 |
0.083 |
2.11 |
6.0" |
6.00 |
152.4 |
10 |
254 |
5 |
127 |
0.109 |
2.77 |
8.0" |
8.00 |
203.2 |
14 |
356 |
7 |
178 |
0.109 |
2.77 |
