EAGLE ™ Sanitary Weld Elbow 45°, No Tangent (2WK)

$13.80
EAGLE™ 3A 2WK Weld Elbow 45°, No Tangent - Sanitary Fittings
EAGLE

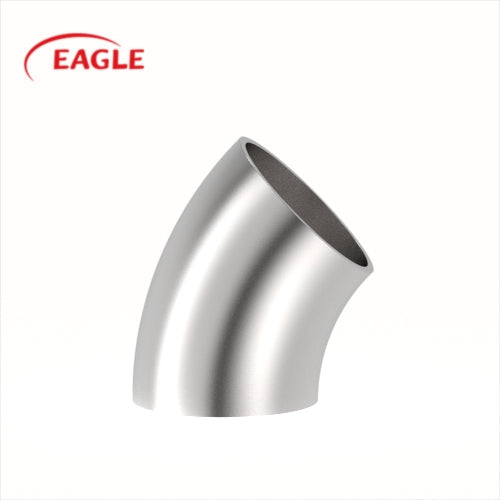

EAGLE ™ Sanitary Weld Elbow 45°, No Tangent (2WK)

From $5.40

Accommodate 45° process line turn with permanent butt weld elbow fitting



The Polished 45° Elbow is available in both 304 & 316L stainless steel alloys. Welds are required at both ends in order to accommodate a 45° change in angle between separate runs of sanitary tubing. Stainless steel material is resistant to corrosion and can withstand high temperatures. This product is manufactured in accordance with 3A standards for process line applications including food & beverage industries.

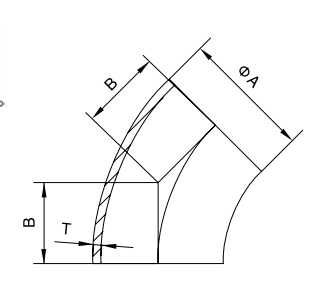

Dimension

Size

A

B

T



inch

mm

inch

mm

inch

mm

1.0"

1.000

25.4

0.625

15.8

0.065

1.65

1.5"

1.500

38.1

0.937

23.8

0.065

1.65

2.0"

2.000

50.8

1.250

31.7

0.065

1.65

2.5"

2.500

63.5

1.562

39.6

0.065

1.65

3.0"

3.000

76.2

1.875

47.6

0.065

1.65

4.0"

4.000

101.6

2.500

63.5

0.083

2.11

Size

  • 1/2"
  • 3/4"
  • 1"
  • 1 1/2"
  • 2"
  • 2 1/2"
  • 3"
  • 4"
  • 5"
  • 6"
  • 8"
  • 10"
  • 12"

Grade

  • SS316L
  • SS304
