EAGLE ™ BPE DT-10 Reducing Tee

$99.20

BPE DT-10 Reducing Tee

EAGLE

EAGLE ™ BPE DT-10 Reducing Tee

From $78.50

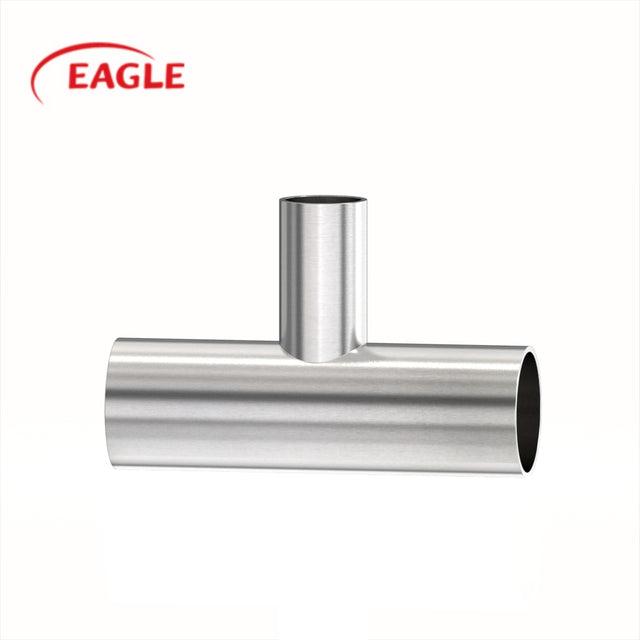

Bio-Pharmaceutical (BPE) Polished Reducing Tee (T-piece)
Finishes: PL SF1 20Ra / PM SF4 15Ra Polished
ASME BPE Standards for Bioprocessing Equipment

Dimension

Size	Dimensions
Size	A in.	A mm	B in.	B mm
3/8 × 1/4	1.750	44.5	1.750	44.5
1/2 × 1/4	1.875	47.6	1.875	47.6
1/2 × 3/8	1.875	47.6	1.875	47.6
3/4 × 1/4	2.000	50.8	2.000	50.8
3/4 × 3/8	2.000	50.8	2.000	50.8
3/4 × 1/2	2.000	50.8	2.000	50.8
1 × 1/4	2.125	54.0	2.125	54.0
1 × 3/8	2.125	54.0	2.125	54.0
1 × 1/2	2.125	54.0	2.125	54.0
1 × 3/4	2.125	54.0	2.125	54.0
1 1/2 × 1/2	2.375	60.3	2.375	60.3
1 1/2 × 3/4	2.375	60.3	2.375	60.3
11/2 × 1	2.375	60.3	2.375	60.3
2 × 1/2	2.875	73.0	2.625	66.7
2 × 3/4	2.875	73.0	2.625	66.7
2 × 1	2.875	73.0	2.625	66.7
2 × 1 1/2	2.875	73.0	2.625	66.7
2 1/2 × 1/2	3.125	79.4	2.875	73.0
2 1/2 × 3/4	3.125	79.4	2.875	73.0
2 1/2 × 1	3.125	79.4	2.875	73.0
2 1/2 × 11/2	3.125	79.4	2.875	73.0
2 1/2 × 2	3.125	79.4	2.875	73.0
3 × 1/2	3.375	85.7	3.125	79.4
3 × 3/4	3.375	85.7	3.125	79.4
3 × 1	3.375	85.7	3.125	79.4
3 × 1 1/2	3.375	85.7	3.125	79.4
3 × 2	3.375	85.7	3.125	79.4
3 × 2 1/2	3.375	85.7	3.125	79.4
4 × 1/2	4.125	104.8	3.625	92.1
4 × 3/4	4.125	104.8	3.625	92.1
4 × 1	4.125	104.8	3.625	92.1
4 × 1 1/2	4.125	104.8	3.625	92.1
4 × 2	4.125	104.8	3.875	98.4
4 × 2 1/2	4.125	104.8	3.875	98.4
4 × 3	4.125	104.8	3.875	98.4
6 × 3	5.625	142.9	4.875	123.8
6 × 4	5.625	142.9	5.125	130.2

Size

3/4" x 1/2"
1" x 1/2"
1" x 3/4"
1 1/2" x 1/2"
1 1/2" x 3/4"
1 1/2" x 1"
2" x 1/2"
2" x 3/4"
2" x 1"
2" x 1 1/2"
2 1/2" x 1/2"
2 1/2" x 3/4"
2 1/2" x 1"
2 1/2" x 1 1/2"
2 1/2" x 2"
3" x 1/2"
3" x 3/4"
3" x 1"
3" x 1 1/2"
3" x 2"
3" x 2 1/2"
4" x 1/2"
4" x 3/4"
4" x 1"
4" x 1 1/2"
4" x 2"
4" x 2 1/2"
4" x 3"

Finish

15RA/ PM/ SF4
20RA/ PL/ SF1
