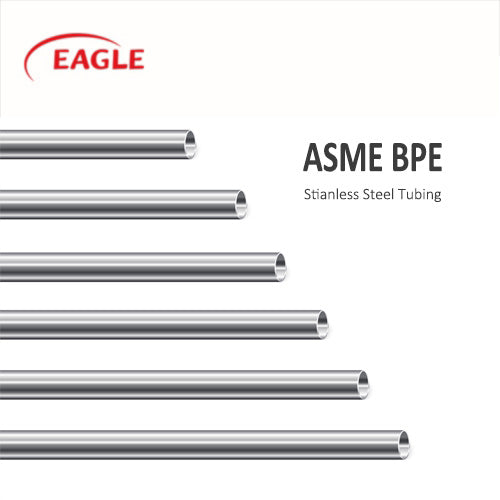

BioPharma Stainless Steel Tubing (ASME BPE)(Sold by the foot)
From
$8.24
Unit price
/
Unavailable
BioPharma Stainless Steel Tubing (ASME BPE)(Sold by the foot)
BPE tubing plays a critical role in the BioPharmacutical industries, where strict hygiene standards must be met. Our polished stainless steel sanitary tubing is produced in compliance with ASME BPE. Bright annealing follows in a controlled atmosphere to preserve maximum structural integrity.
| Size OD | Tolerances,OD | Wall thickness |
Tolerances on
wall thickness
|
Tolerances on
Length
|
Weight Kg/M |
| 1/2" (12.7) | +1-0.005(0.13) | 0.065"(1.65) | +/-10.0% | +1/8" (3.18)-0 | 0.4571 |
| 3/4" (19.1) | +/-0.005(0.13) | 0.065"(1.65) | +/-10.0% | +1/8" (3.18)-0 | 0.7218 |
| 1"(25.4) | +/-0.005(0.13) | 0.065"(1.65) | +/-10.0% | +1/8" (3.18)-0 | 0.9824 |
| 1-1/2" (38.1) | +/-0.008(0.20) | 0.065"(1.65) | +/-10.0% | +1/8" (3.18)-0 | 1.5078 |
| 2"(50.8) | +/-0.008(0.20) | 0.065"(1.65) | +/-10.0% | +1/8" (3.18)-0 | 2.0331 |
| 2-1/2"(63.5) | +/-0.010(0.25) | 0.065"(1.65) | +/-10.0% | +1/8" (3.18)-0 | 2.5585 |
| 3"(76.2) | +/-0.010(0.25) | 0.065"(1.65) | +/-10.0% | +1/8" (3.18)-0 | 3.0797 |
| 4"(101.6) | +/-0.015(0.38) | 0.083"(2.11) | +/-10.0% | +1/8" (3.18)-0 | 5.2628 |
| 6”(152.4) | +/-0.030(0.76) | 0.109"(2.77) | +/-10.0% | +1" (25.4)-0 | 10.3909 |
| Eements | 316L(Wt%) | |
| (C) | Carbon,Max. | 0.035 |
| (Mn) | Manganese,Max. | 2.00 |
| (P) | Phosphorus,Max. | 0.040 |
| (S) | Sulfur | 0.005-0.017 |
| (Si) | Silicon, Max. | 0.75 |
| (Ni) | Nickel | 10.0-15.0 |
| (Cr) | Chromium | 16.0-18.0 |
| (Mo) | Molybdenum | 2.0-3.0 |
| Surface texture (Ra um) | Standard designation | Treatment |
UltraPure
ASME-BPE
|
UltraPure
Series A and
series B
|
|||||
| lnternal |
Welded /
Bended area
|
Extermal | Turbular | Machined | According to | ||||
| PL | <0.5 | <0.5 | <0.8 | SF1 | SF1 | ASME BPE | Annealed | x | |
| PM | <0.4EP3) | <0.4EP3) | <0.8 | SF4 | SF4 | ASME BPE | Annealed | x | |
| H3o/H3 | <0.8 | <0.8 | <1.6 | H3o | H3 | DIN 11866 | Annealed | x | |
| H4o/H4 | <0.4 | <0.4 | <0.8 | H4o | H4 | DIN 11866 | Annealed | x | |
| HE4oHE4 | <0.4 EP3) | <0.4 EP3) | <0.8 | HE4o | HE4 | DIN 11866 | Annealed | x | |
| Tube OD | Tube lD |
Wall
Thickness
|
Volume | Weight Dry |
Weight with
Water
|
Flow(GPM) a Mean Velocity | ||
| Inches | Inches | Inches | Gal/100 ft | lbs/100 ft | lbs/100 ft | 5 fps | 7 fps | 10 fps |
| 1/2 | 0.37 | 0.065 | 0.56 | 30.6 | 35.3 | 1.7 | 2.3 | 3.4 |
| 3/4 | 0.62 | 0.065 | 1.57 | 48.2 | 61.3 | 4.7 | 6.6 | 94 |
| 1 | 0.87 | 0.065 | 3.09 | 65.8 | 91.5 | 9.3 | 13 | 19 |
| 1-1/2 | 1.37 | 0.065 | 7.66 | 100.9 | 164.8 | 23 | 32 | 46 |
| 2 | 1.87 | 0.065 | 14.27 | 136.1 | 255.1 | 43 | 60 | 86 |
| 2-1/2 | 2.37 | 0.065 | 22.92 | 171.2 | 362.4 | 69 | 96 | 138 |
| 3 | 2.87 | 0.065 | 33.6 | 206.4 | 486.7 | 101 | 141 | 202 |
| 4 | 3.834 | 0.083 | 59.97 | 351.8 | 851.9 | 180 | 252 | 360 |
| 6 | 5.782 | 0.109 | 136.39 | 694,7 | 1832.2 | 409 | 573 | 818 |
| 8 | 7.782 | 0.109 | 247.07 | 930.6 | 2991.1 | 741 | 1038 | 1482 |
