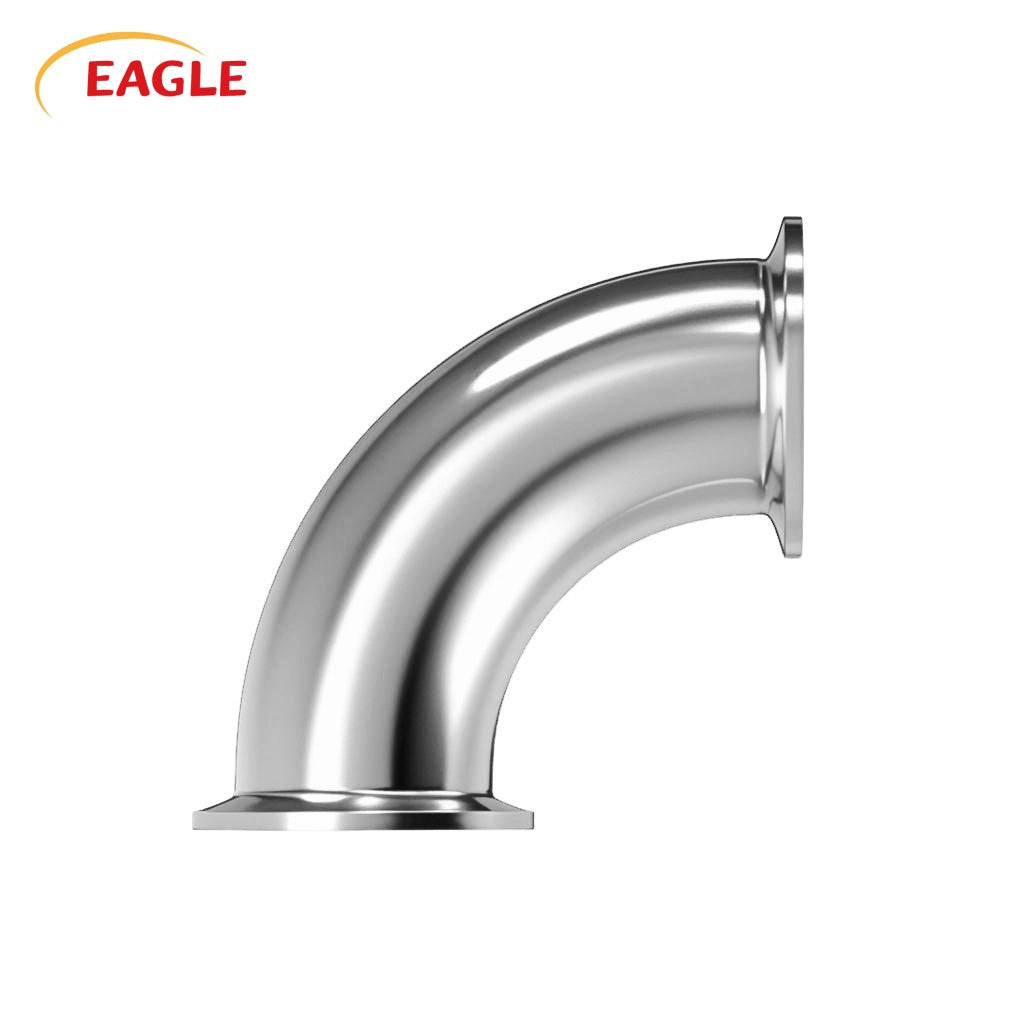

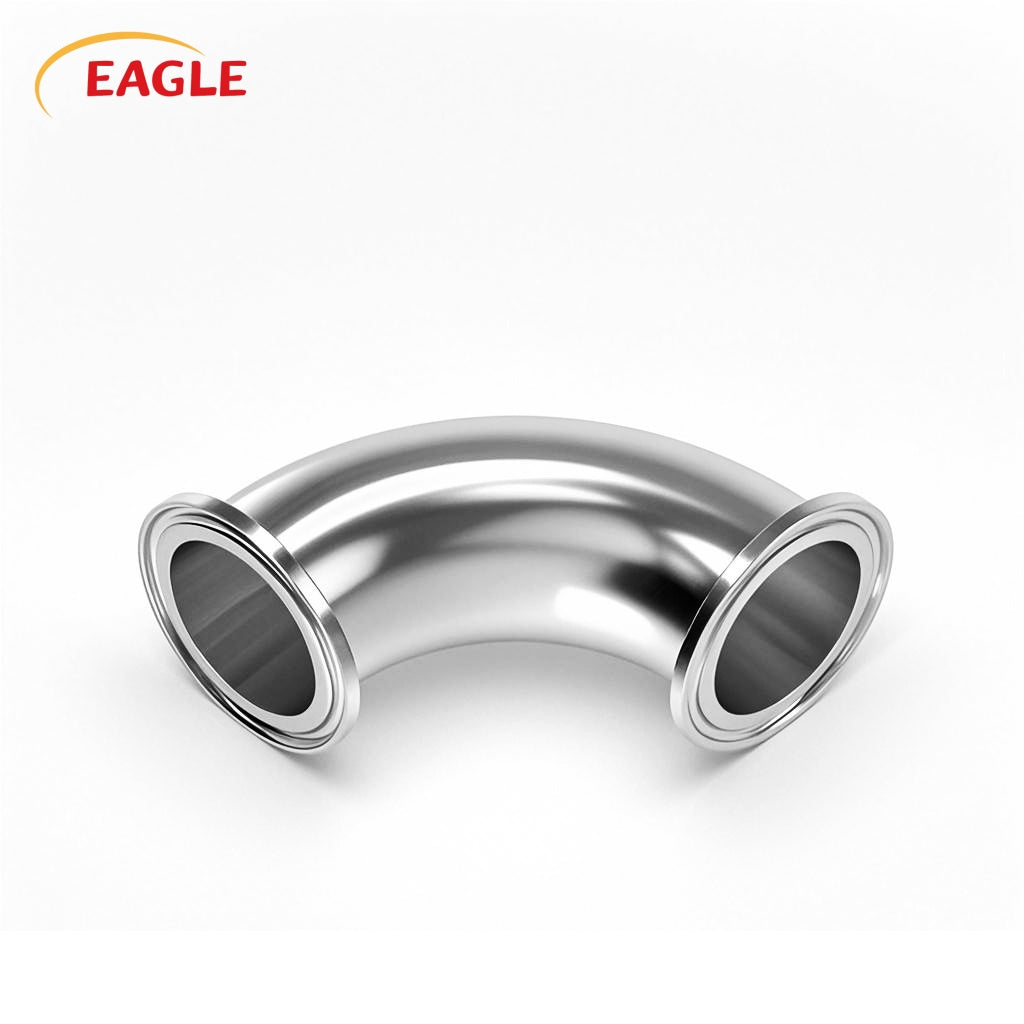

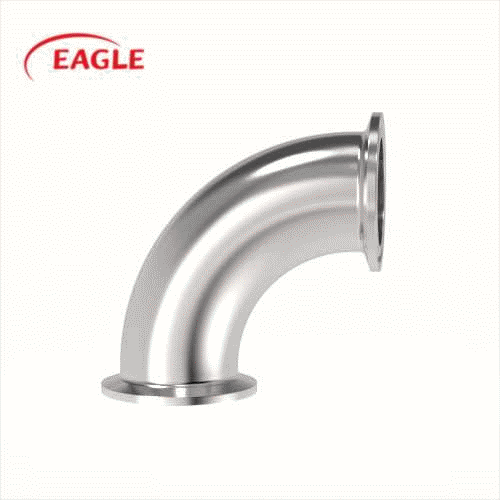

4 Inch 90 Degree Tri-Clamp Elbow Pipe Fittings
Our 4-inch 90° Tri-Clamp Elbow Fittings are engineered for industries where cleanliness and reliability are non-negotiable. Made from seamless 316L stainless steel with electropolished surfaces (Ra ≤15 µin), these elbows eliminate dead zones, resist CIP/SIP cleaning cycles, and prevent bacterial buildup in:
Food & Beverage: Dairy transfer, beer brewing, sauce piping.
“Stainless Steel Fittings Corrode in Acidic CIP”
→ Passivated 316L SS: Resists nitric acid, caustic soda, and chloride-based sanitizers.
“Custom Sizes Delay Projects”
→ In-Stock & Ready to Ship: 4" standard, or request custom angles (45°, 60°) in 72hrs.
Q: Can these elbows handle steam sterilization?
→ Yes! Rated for 250°F continuous steam (400°F intermittent). Use FKM gaskets for best results.
Q: Do you supply matching gaskets/clamps?

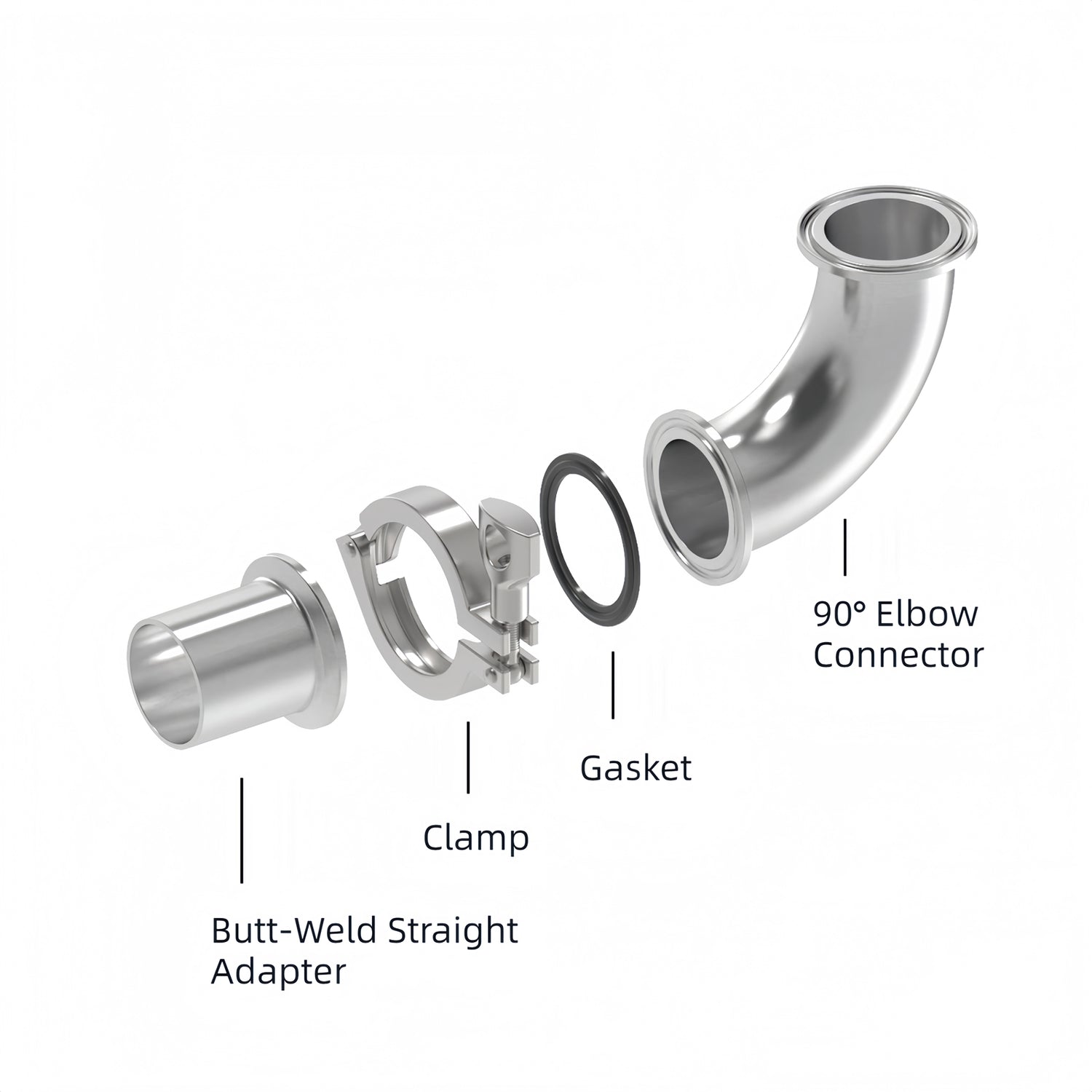

→ All elbows ship with EPDM gaskets & 316L clamps. Customize with PTFE or Viton® on request.
Q: Are they compatible with existing 4" Tri-Clamp systems?
→ Fully compliant with DIN 32676 and ISO 2852 – seamless integration with major brands (Alfa Laval, GEA).
“Switched to these elbows in our yogurt plant – zero CIP failures in 18 months. Saved $12k/yr on maintenance.”
– John T., Plant Manager, Dairy Processing Co.
“The 316L material handled daily nitric acid washes in our API production line. Finally, a fitting that lasts.”
– Dr. Li, Pharma QA Director
Size |
A |
L |
||
|
inch |
mm |
inch |
mm |
1.0" |
1.99 |
50.5 |
2.00 |
50.8 |
1.5" |
1.99 |
50.5 |
2.75 |
69.9 |
2.0" |
2.52 |
64.0 |
3.50 |
88.9 |
2.5" |
3.05 |
77.5 |
4.25 |
107.9 |
3.0" |
3.58 |
91.0 |
5.00 |
127.0 |
4.0" |
4.69 |
119.0 |
6.62 |
168.2 |
Our 4-inch 90° Tri-Clamp Elbow Fittings are engineered for industries where cleanliness and reliability are non-negotiable. Made from seamless 316L stainless steel with electropolished surfaces (Ra ≤15 µin), these elbows eliminate dead zones, resist CIP/SIP cleaning cycles, and prevent bacterial buildup in:
Food & Beverage: Dairy transfer, beer brewing, sauce piping.
“Stainless Steel Fittings Corrode in Acidic CIP”
→ Passivated 316L SS: Resists nitric acid, caustic soda, and chloride-based sanitizers.
“Custom Sizes Delay Projects”
→ In-Stock & Ready to Ship: 4" standard, or request custom angles (45°, 60°) in 72hrs.
Q: Can these elbows handle steam sterilization?
→ Yes! Rated for 250°F continuous steam (400°F intermittent). Use FKM gaskets for best results.
Q: Do you supply matching gaskets/clamps?
→ All elbows ship with EPDM gaskets & 316L clamps. Customize with PTFE or Viton® on request.
Q: Are they compatible with existing 4" Tri-Clamp systems?
→ Fully compliant with DIN 32676 and ISO 2852 – seamless integration with major brands (Alfa Laval, GEA).
“Switched to these elbows in our yogurt plant – zero CIP failures in 18 months. Saved $12k/yr on maintenance.”
– John T., Plant Manager, Dairy Processing Co.
“The 316L material handled daily nitric acid washes in our API production line. Finally, a fitting that lasts.”
– Dr. Li, Pharma QA Director
Size |
A |
L |
||
|
inch |
mm |
inch |
mm |
1.0" |
1.99 |
50.5 |
2.00 |
50.8 |
1.5" |
1.99 |
50.5 |
2.75 |
69.9 |
2.0" |
2.52 |
64.0 |
3.50 |
88.9 |
2.5" |
3.05 |
77.5 |
4.25 |
107.9 |
3.0" |
3.58 |
91.0 |
5.00 |
127.0 |
4.0" |
4.69 |
119.0 |
6.62 |
168.2 |
