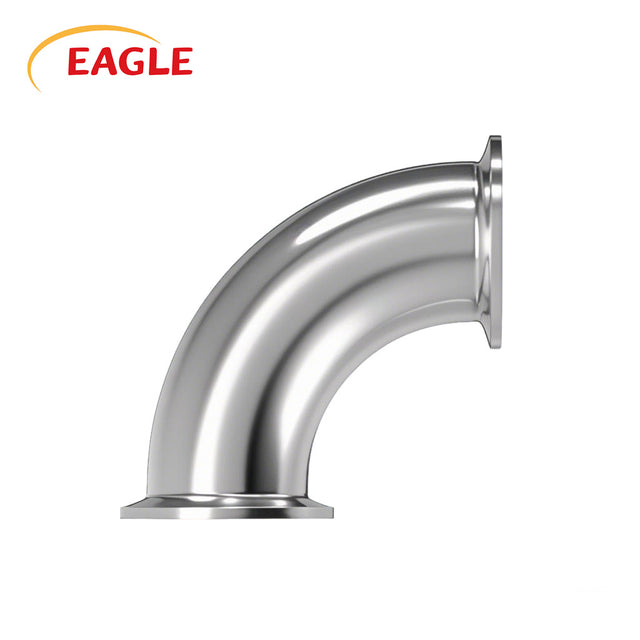

Sanitary 90 Deg Clamp Elbow is available in both 304 and 316L alloy, stainless steel. Clamp adapters such as the single pin heavy duty clamp with wing nut or bolted clamp should be used to properly secure joining ends.
Clamp style connection allows for easy disassembly for cleaning and access to line processing media. This product is manufactured in accordance with 3A Standards for sanitary-grade line process equipment.
3-A Sanitary Standards Inc. certifies products meet FDA and USDA regulations to prevent contamination in food, beverage, dairy, and pharmaceutical manufacturing environments.
Size |
A |
L |
||
|
inch |
mm |
inch |
mm |
1.0" |
1.99 |
50.5 |
2.00 |
50.8 |
1.5" |
1.99 |
50.5 |
2.75 |
69.9 |
2.0" |
2.52 |
64.0 |
3.50 |
88.9 |
2.5" |
3.05 |
77.5 |
4.25 |
107.9 |
3.0" |
3.58 |
91.0 |
5.00 |
127.0 |
4.0" |
4.69 |
119.0 |
6.62 |
168.2 |
About Egle
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
Sanitary 90 Deg Clamp Elbow is available in both 304 and 316L alloy, stainless steel. Clamp adapters such as the single pin heavy duty clamp with wing nut or bolted clamp should be used to properly secure joining ends.
Clamp style connection allows for easy disassembly for cleaning and access to line processing media. This product is manufactured in accordance with 3A Standards for sanitary-grade line process equipment.
3-A Sanitary Standards Inc. certifies products meet FDA and USDA regulations to prevent contamination in food, beverage, dairy, and pharmaceutical manufacturing environments.
