Sanitary hose barb adapters connect tri-clamp process lines with external rubber hoses

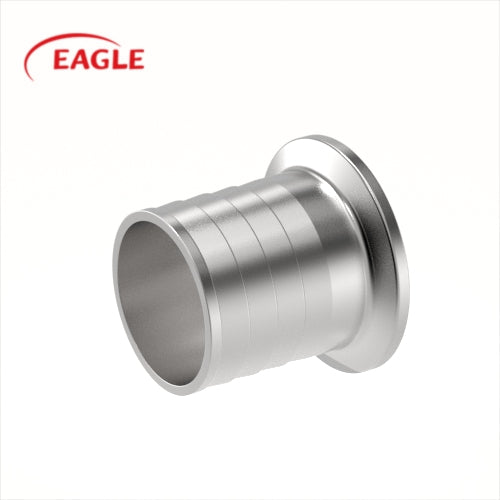

Tri-Clamp Sanitary Hose Barb Adapter
Available in 316L Stainless Steel, 32Ra
Also Available in Surface Finishes: 15Ra, 20Ra
Stamped with Heat Lot Number
Creates connection between clamp and rubber hose
Tri-Clamp style hose adapter is available in both 304 & 316L stainless steel alloy. This product allows for both ease in assembly and breakdown of sanitary line process equipment. The grooved end provides a tight seal for rubber hose connection. Clamp end requires the use of single or double bolt pin along with rubber gasket to complete assembly. Sizing Note: The Outside Diameter (OD) of the Hose Barb should match the Inside Diameter (ID) of your hose for connection purposes. Hoses can be securely attached using a worm clamp.

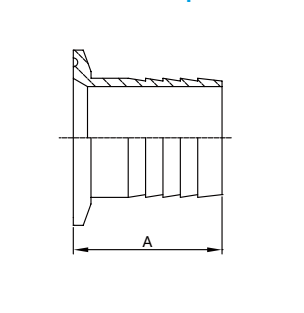

Dimension
Size
A
inch
mm
1"
1.687
42.8
1.5"
1.687
42.8
2"
2.312
58.7
2.5"
2.343
59.5
3"
3.093
78.5
4"
3.406
86.5
6"
3.406
86.5
8"
3.406
86.5
