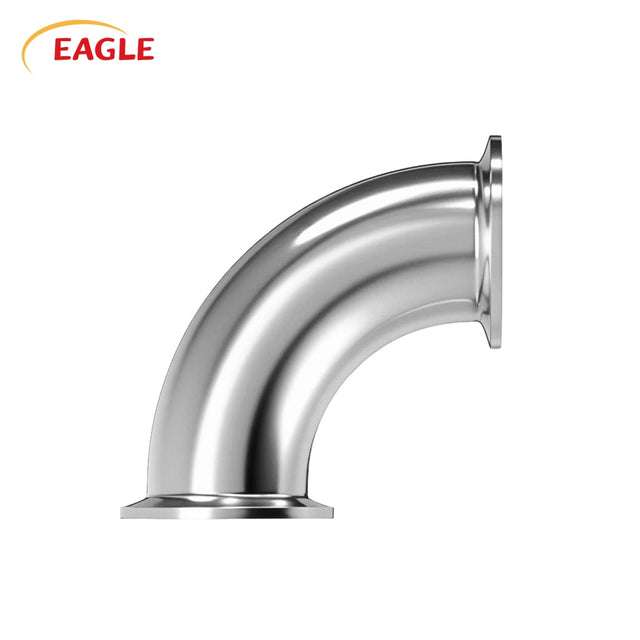

1-1/2" Sanitary Tri-Clamp 90 Degree Stainless Steel Elbow
Precision-Crafted for Clean, Reliable Flow in Sensitive Systems
Engineered for industries where hygiene and performance are non-negotiable, our 1-1/2" Sanitary Tri-Clamp 90° Elbow is made from seamless 316L stainless steel with an electropolished finish (Ra ≤15 µin). Designed to eliminate contamination risks, it’s trusted in:
“Bacterial Buildup in Tight Corners”
→ Smooth Radius Design: No crevices—passes USDA and EU hygiene audits.
“Leaks During High-Pressure CIP”
→ Triple-Sealed Gaskets: EPDM/FKM options handle 150 PSI and 250°F steam.
“Corrosion in Acidic Cleaners”
→ Passivated 316L: Resists nitric acid and caustic soda.
“Long Lead Times for Mid-Size Fittings”
→ In Stock & Ready to Ship: Standard 1-1/2" or custom angles in 72hrs.
“Used these elbows in our craft brewery—zero leaks and CIP cycles cut by 20%.”
– Mike R., Brewmaster, HopsCraft Brewing
“Perfect for our sterile vaccine lines. Passed FDA audit effortlessly.”
– Dr. Lee, Pharma QA Director
Size |
A |
L |
||
|
inch |
mm |
inch |
mm |
1.0" |
1.99 |
50.5 |
2.00 |
50.8 |
1.5" |
1.99 |
50.5 |
2.75 |
69.9 |
2.0" |
2.52 |
64.0 |
3.50 |
88.9 |
2.5" |
3.05 |
77.5 |
4.25 |
107.9 |
3.0" |
3.58 |
91.0 |
5.00 |
127.0 |
4.0" |
4.69 |
119.0 |
6.62 |
168.2 |
Precision-Crafted for Clean, Reliable Flow in Sensitive Systems
Engineered for industries where hygiene and performance are non-negotiable, our 1-1/2" Sanitary Tri-Clamp 90° Elbow is made from seamless 316L stainless steel with an electropolished finish (Ra ≤15 µin). Designed to eliminate contamination risks, it’s trusted in:
“Bacterial Buildup in Tight Corners”
→ Smooth Radius Design: No crevices—passes USDA and EU hygiene audits.
“Leaks During High-Pressure CIP”
→ Triple-Sealed Gaskets: EPDM/FKM options handle 150 PSI and 250°F steam.
“Corrosion in Acidic Cleaners”
→ Passivated 316L: Resists nitric acid and caustic soda.
“Long Lead Times for Mid-Size Fittings”
→ In Stock & Ready to Ship: Standard 1-1/2" or custom angles in 72hrs.
“Used these elbows in our craft brewery—zero leaks and CIP cycles cut by 20%.”
– Mike R., Brewmaster, HopsCraft Brewing
“Perfect for our sterile vaccine lines. Passed FDA audit effortlessly.”
– Dr. Lee, Pharma QA Director
