Imagine a biotech lab where a single contaminated batch of vaccine could risk thousands of lives. Or a dairy plant where a leaky valve might spoil tons of milk. In these high-stakes environments, precision and cleanliness aren’t just goals—they’re non-negotiable. Enter the pneumatic diaphragm valve: a workhorse of fluid control that combines speed, sterility, and reliability to keep critical processes running safely. But what is a pneumatic diaphragm valve, exactly? How does it differ from manual or electric valves? And why is it the go-to choice for industries like food processing, pharmaceuticals, and biotech? This guide breaks it all down, from its working principle and key components to the types that dominate modern manufacturing—plus a look at Eagle’s standout pneumatic diaphragm valves, trusted for their sanitary design, budget-friendly pricing, and rigorous certifications.
What is a Pneumatic Diaphragm Valve?
At its core, a pneumatic diaphragm valve is a fluid control device that uses compressed air (pneumatics) to open and close, regulating the flow of liquids or gases in a pipeline. Unlike manual valves (which require hand cranking) or electric valves (powered by motors), pneumatic diaphragm valves rely on air pressure to actuate, making them faster, more precise, and easier to automate.
The star of the show? A flexible diaphragm—a thin, durable membrane (often made of rubber, PTFE, or EPDM)—that sits between the valve body and an actuator. When compressed air enters the actuator, it pushes the diaphragm down onto a seat, blocking flow. When air is released, the diaphragm lifts, letting fluid pass. It’s a simple, elegant design with zero “dead spaces” (areas where bacteria or residue can hide), making it ideal for sterile or high-purity applications.
How Does a Pneumatic Diaphragm Valve Work? The Basics
Think of a pneumatic diaphragm valve as a high-tech “on/off switch” for fluids, powered by air. Here’s the step-by-step:
- Valve Closed: No air pressure in the actuator. The diaphragm rests against the valve seat, forming a tight seal—no fluid flows.
- Air Supply On: Compressed air (typically 60–100 psi) enters the actuator, creating downward pressure on the diaphragm.
- Diaphragm Lifts: The air pressure pushes the diaphragm upward, away from the seat, opening a path for fluid to flow through the valve body.
- Air Released: When air pressure drops, a spring (or the diaphragm’s natural flexibility) pushes it back down, closing the valve tightly.
This cycle happens in milliseconds, making pneumatic diaphragm valves perfect for applications where speed and precision matter—like dosing medication in a pharmaceutical line or switching between ingredients in a brewery.
Key Components of a Pneumatic Diaphragm Valve
To understand how these valves perform, let’s break down their core parts:
- Diaphragm: The “gatekeeper.” Made of flexible materials (PTFE for chemicals, EPDM for water, silicone for food), it seals tightly when closed and flexes to open.
- Valve Body: The main housing, usually made of stainless steel (316L for corrosion resistance), plastic, or brass. It directs fluid flow and houses the seat.
- Actuator: The “muscle.” A cylindrical chamber that holds compressed air, pushing the diaphragm up/down. May include a spring for quick closing.
- Air Supply Port: A fitting that connects the actuator to an air compressor or pneumatic control system (like a PLC).
- Seat: A smooth, replaceable surface in the valve body that the diaphragm presses against to seal. Made of materials matching the diaphragm for tightness.
Types of Pneumatic Diaphragm Valves: Designed for Every Industry
Not all pneumatic diaphragm valves are created equal. Different industries demand specialized features—here are the most common types:
Sanitary Pneumatic Diaphragm Valves: For Sterile Environments
When “clean” is non-negotiable (think food, pharmaceuticals, or dairy), sanitary pneumatic diaphragm valves are the gold standard.
- Key Features: Polished 316L stainless steel bodies (no crevices for bacteria), smooth diaphragms (PTFE or silicone), and clamp-style connections for easy disassembly and cleaning (CIP/SIP compatible).
- Uses: Filling lines for yogurt, vaccine production, cosmetic manufacturing—anywhere sterility and easy cleaning are critical.
Stainless Steel 316L Pneumatic Diaphragm Valves: Corrosion Resistance
For harsh chemicals, saltwater, or acidic fluids, stainless steel 316L pneumatic diaphragm valves shine. The 316L alloy (with molybdenum) resists rust and pitting far better than standard 304 stainless steel.
- Key Features: Heavy-duty 316L bodies, PTFE diaphragms (chemical-resistant), and rugged actuators for industrial use.
- Uses: Marine applications, chemical processing (acids, solvents), wastewater treatment, and offshore oil rigs.
Biotech-Grade Pneumatic Diaphragm Valves: Precision for Life Sciences
Biotech labs and pharmaceutical plants need valves that handle sensitive fluids (like cell cultures or enzymes) without contamination. Biotech pneumatic diaphragm valves deliver.
- Key Features: Ultra-smooth surfaces (Ra ≤0.8μm), FDA-approved materials (no leachable additives), and “zero dead volume” design to prevent fluid trapping.
- Uses: Bioreactors, DNA sequencing equipment, and monoclonal antibody production lines.
Top Applications: Where Pneumatic Diaphragm Valves Excel
From your morning coffee to life-saving drugs, pneumatic diaphragm valves play a role in countless products. Here’s where they’re most critical:
- Food & Beverage: Controlling syrup flow in soda bottling, regulating milk pasteurization, or switching between fruit purees in jam production.
- Pharmaceuticals: Dosing precise amounts of active ingredients in pill manufacturing, or isolating sterile zones in IV fluid production.
- Biotech: Managing cell culture media flow in bioreactors, or controlling buffer solutions in protein purification.
- Water Treatment: Adjusting chemical dosages (like chlorine) in municipal water plants, or regulating filtration systems.
- Chemical Processing: Handling corrosive fluids (acids, alkalis) in batch reactors, or isolating hazardous materials.
Why Choose Pneumatic Diaphragm Valves? 5 Key Advantages
Pneumatic diaphragm valves outshine manual, electric, or hydraulic valves in many scenarios. Here’s why engineers and plant managers swear by them:
- Fast, Repeatable Actuation: Open/close in milliseconds, perfect for high-speed production lines (like bottling 1,000+ cans per minute).
- Remote Control: Operated via air pressure, so they can be controlled from a distance—ideal for hazardous or hard-to-reach areas.
- Clean, Sterile Design: No gears, motors, or crevices where bacteria or residue can hide—critical for food/pharma.
- Durable & Low-Maintenance: Fewer moving parts than electric valves, meaning less wear and tear (and lower repair costs).
- Safe for Harsh Environments: Resist moisture, dust, and temperature extremes—works in factories, outdoors, or even underwater.

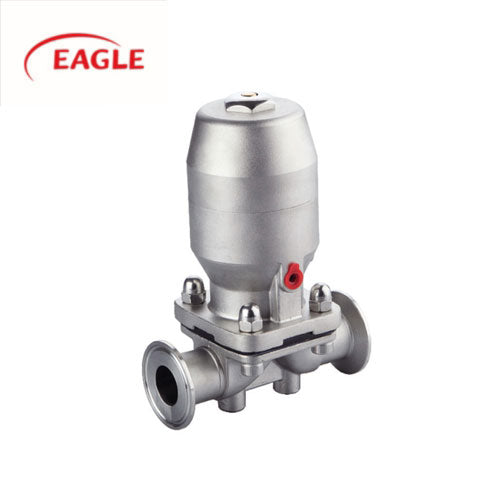

Eagle Pneumatic Diaphragm Valves: Sanitary, Affordable, and Certified
When it comes to reliable, cost-effective pneumatic diaphragm valves, Eagle has earned a reputation for delivering quality without the premium price tag. Here’s why they’re a top pick for businesses balancing safety and budget:
- Sanitary Grade as Standard: Eagle’s sanitary pneumatic diaphragm valves feature 316L stainless steel bodies, polished to Ra ≤0.8μm, and FDA-approved diaphragms (PTFE/silicone)—meeting strict 3-A and EHEDG standards for food and pharma.
- Budget-Friendly Pricing: By cutting out middlemen and streamlining manufacturing, Eagle offers valves 15–20% cheaper than global premium brands—without skimping on materials or testing.
- Rigorous Certifications: Every valve is certified to CE, ISO 9001, and (for sanitary models) FDA and 3-A. They’re also tested for leak-tightness and cycle durability (100,000+ cycles) before leaving the factory.
- Quality You Can Trust: Eagle uses only virgin 316L stainless steel and high-purity diaphragms, ensuring no contamination or premature failure. Their actuators are built to withstand Malaysia’s humid climate and power fluctuations.
Final Thoughts: Pneumatic Diaphragm Valves—The Backbone of Modern Fluid Control
Whether you’re running a small brewery or a multi-million-dollar biotech lab, the right valve keeps your operation safe, efficient, and compliant. Pneumatic diaphragm valves stand out for their speed, cleanliness, and versatility, making them indispensable across industries. And with brands like Eagle offering sanitary, certified options at accessible prices, there’s no reason to compromise on quality.
Next time you enjoy a glass of juice, take a vaccine, or turn on the tap, remember: behind the scenes, a pneumatic diaphragm valve is hard at work—quietly ensuring safety, precision, and reliability.
