If you work in oil & gas, chemical processing, or heavy industry, you’ve likely encountered tough flow control challenges: high pressure, abrasive fluids, or the need for zero leakage. Enter the eccentric hemispherical valve—a specialized valve designed to tackle these “severe service” conditions with unmatched durability and precision. But what exactly is it, and why does it outperform traditional valves in demanding environments? In this guide, we’ll break down its design, how it works, key advantages, and real-world applications, so you can decide if it’s the right fit for your system.
What is an Eccentric Hemispherical Valve?

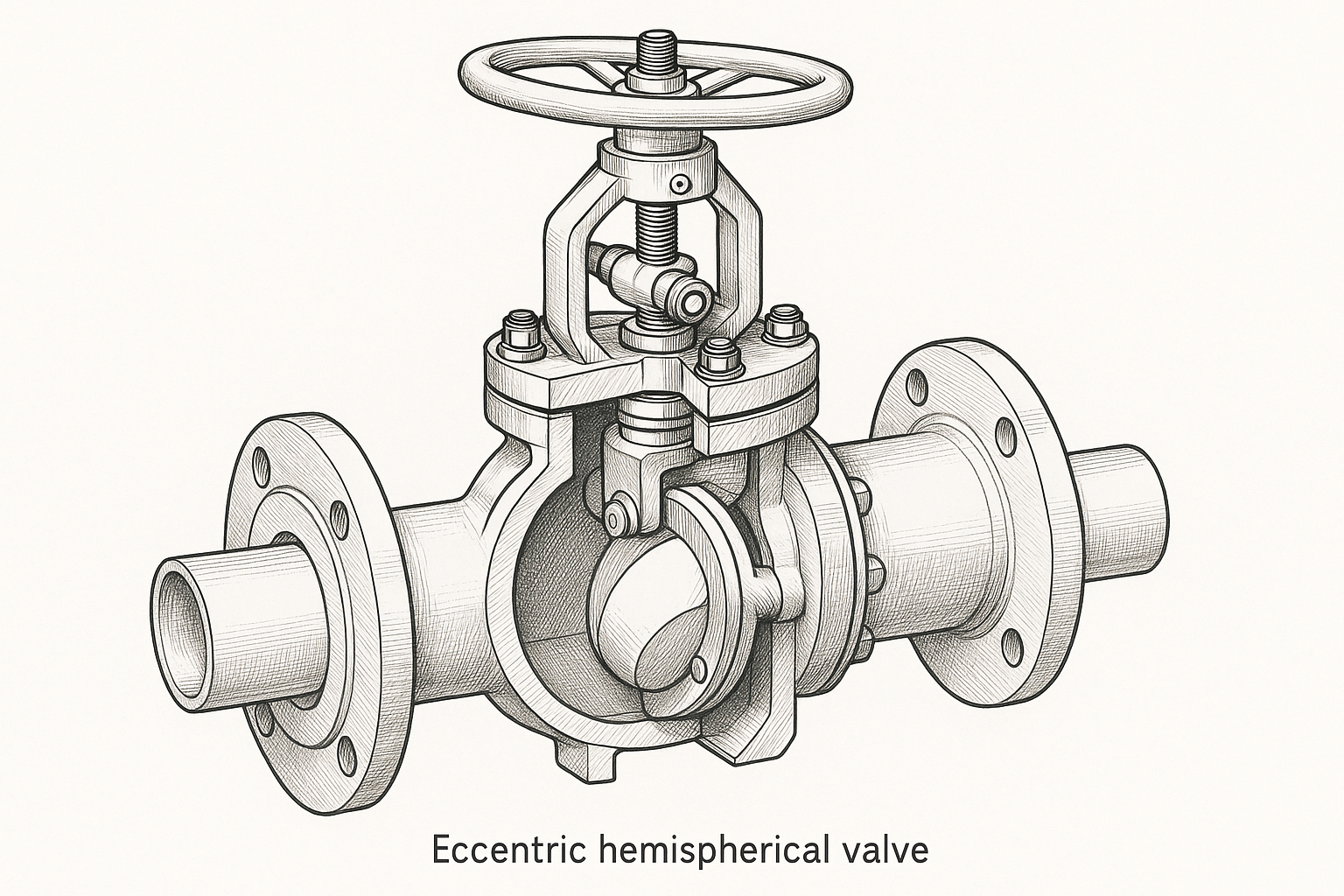

An eccentric hemispherical valve is a quarter-turn valve engineered for precise fluid control in high-pressure, high-abrasion industrial settings. Its defining features are twofold:
- Eccentric Design: The valve’s shaft (which rotates the closure element) is offset from the centerline of the valve seat. This “eccentricity” ensures the closure element lifts away from the seat during opening, minimizing friction and wear.
- Hemispherical Closure: The closure element (the part that opens/closes flow) is a half-sphere (hemisphere), which mates with a similarly curved valve seat to create a tight, metal-to-metal seal.
Together, these features make it ideal for handling thick slurries, corrosive chemicals, or high-temperature fluids—applications where standard valves (like ball or gate valves) often fail due to leakage or rapid wear.
How Does an Eccentric Hemispherical Valve Work?
The magic lies in its unique motion, driven by the eccentric shaft and hemispherical closure:
1. Opening Motion
When the valve is opened, the eccentric shaft rotates, lifting the hemispherical closure perpendicularly away from the seat before swinging it aside. This “non-rubbing” action avoids scraping the seat, reducing wear—critical for abrasive fluids like mining slurries or ash handling in power plants.
2. Closing Motion
To close, the process reverses: the shaft rotates, swinging the hemisphere back into position, then lowers it onto the seat. The hemisphere’s curved surface mates perfectly with the seat, creating a tight seal—often achieving “bubble-tight” (zero) leakage, even at high pressures.
Analogy: Think of it like a car door with offset hinges—opening it lifts the door slightly before swinging, avoiding scraping the frame. This is far gentler than a traditional球阀 (ball valve), where the ball rubs against the seat during operation.
Key Features of Eccentric Hemispherical Valves
What sets this valve apart from others (gate valves, globe valves, or even standard ball valves)?
1. Zero Leakage
The hemispherical closure and precision-machined seat form a metal-to-metal seal that can withstand pressures up to 10,000 psi (class 2500) and temperatures from -29°C to 600°C (-20°F to 1112°F). This makes it ideal for toxic or flammable fluids where leakage risks disaster.
2. Wear Resistance
The eccentric lift-and-swing motion minimizes contact between the closure and seat, reducing abrasion—even when handling fluids with suspended solids (e.g., coal slurry, cement paste). Many models use hard-faced materials (stellite, tungsten carbide) for added durability.
3. Low Operating Torque
Eccentric design reduces friction, so the valve requires less force to operate compared to gate valves or large ball valves. This lowers actuator costs and extends service life in automated systems.
4. Versatility
Available in sizes from 2” to 48” and pressure classes up to ANSI 2500, it adapts to everything from small chemical reactors to large-diameter pipelines.
Eccentric Hemispherical Valve vs. Other Valves: When to Choose It
| Valve Type | Best For | Limitations vs. Eccentric Hemispherical |
|---|---|---|
| Ball Valve | Low-pressure, clean fluids (water, gas) | Prone to seat wear in abrasive services; may leak with solids. |
| Gate Valve | On/off service in low-pressure lines | Slow operation; high torque; poor throttling. |
| Globe Valve | Throttling in low-abrasion systems | High pressure drop; frequent maintenance. |
| Eccentric Hemispherical | High-pressure, abrasive, or toxic fluids | Higher upfront cost (offset by long life). |
Industrial Applications: Where It Shines
Eccentric hemispherical valves excel in “severe service” scenarios—tough environments where reliability is non-negotiable:
1. Oil & Gas Production
Used in wellheads, pipelines, and refineries to control crude oil, natural gas, or produced water—often containing sand, wax, or corrosive H2S.
2. Chemical Processing
Ideal for transferring acids, alkalis, or polymer slurries, where zero leakage prevents environmental contamination and product loss.
3. Power Generation
Handles ash slurry, coal water mixtures, and high-temperature steam in thermal power plants, withstanding the wear of abrasive fly ash.
4. Mining & Minerals
Controls mineral slurries (copper, iron ore) and tailings, resisting the abrasion of suspended solids that would destroy standard valves.
How to Select an Eccentric Hemispherical Valve
When choosing a valve for your system, consider:
- Fluid Properties: Abrasiveness, viscosity, and corrosiveness (e.g., use hard-faced seats for slurries).
- Pressure/Temperature: Match the valve’s pressure class (ANSI 150–2500) and temperature rating to your system’s max conditions.
- Size: Ensure the valve diameter matches your pipeline (2”–48” standard; custom sizes available).
- Actuation: Manual (handwheel), pneumatic, or electric actuators—choose based on automation needs and torque requirements.
Final Thoughts
The eccentric hemispherical valve is more than just a valve—it’s a solution for the toughest industrial flow control challenges. Its unique combination of zero leakage, wear resistance, and low operating torque makes it indispensable in oil & gas, chemical, and power sectors, where failure is not an option. While it may cost more upfront than standard valves, its long service life and minimal maintenance often make it the most cost-effective choice in the long run.
