If you’ve ever shopped for pipe fittings, you’ve likely stumbled upon the terms “NPS” and “NPT” and wondered: What’s the difference? These two thread types—National Pipe Straight (NPS) and National Pipe Tapered (NPT)—are foundational to American plumbing and industrial systems, yet they serve distinct purposes. Mixing them up can lead to leaks, stripped threads, or failed installations. In this guide, we’ll break down their core differences, standards, and applications, so you can choose the right thread for your project.
What Are NPS and NPT?
Both NPS and NPT fall under the American National Pipe Standard, the U.S. technical specification for threaded pipes and fittings. But their designs and uses couldn’t be more different:
NPT: National Pipe Tapered
NPT threads are tapered—meaning the threads narrow slightly along their length (a 1°47′ taper, or 0.75 inches per foot). This taper creates a tight, metal-to-metal seal as the threads compress during installation. Unlike straight threads, NPT doesn’t require gaskets in most cases; hand-tightening with Teflon tape or pipe dope is often enough to prevent leaks.
Common Misconception: Many people (even industry pros!) mistakenly call all pipe threads “NPT.” In reality, NPT specifically refers to the tapered subtype.
NPS: National Pipe Straight
NPS threads are straight—with parallel threads that don’t taper. They rely on gaskets, O-rings, or sealant to create a leak-free connection, as the straight design doesn’t compress like NPT. NPS is often used in low-pressure systems or where frequent disassembly is needed, such as in some industrial valves or decorative plumbing.

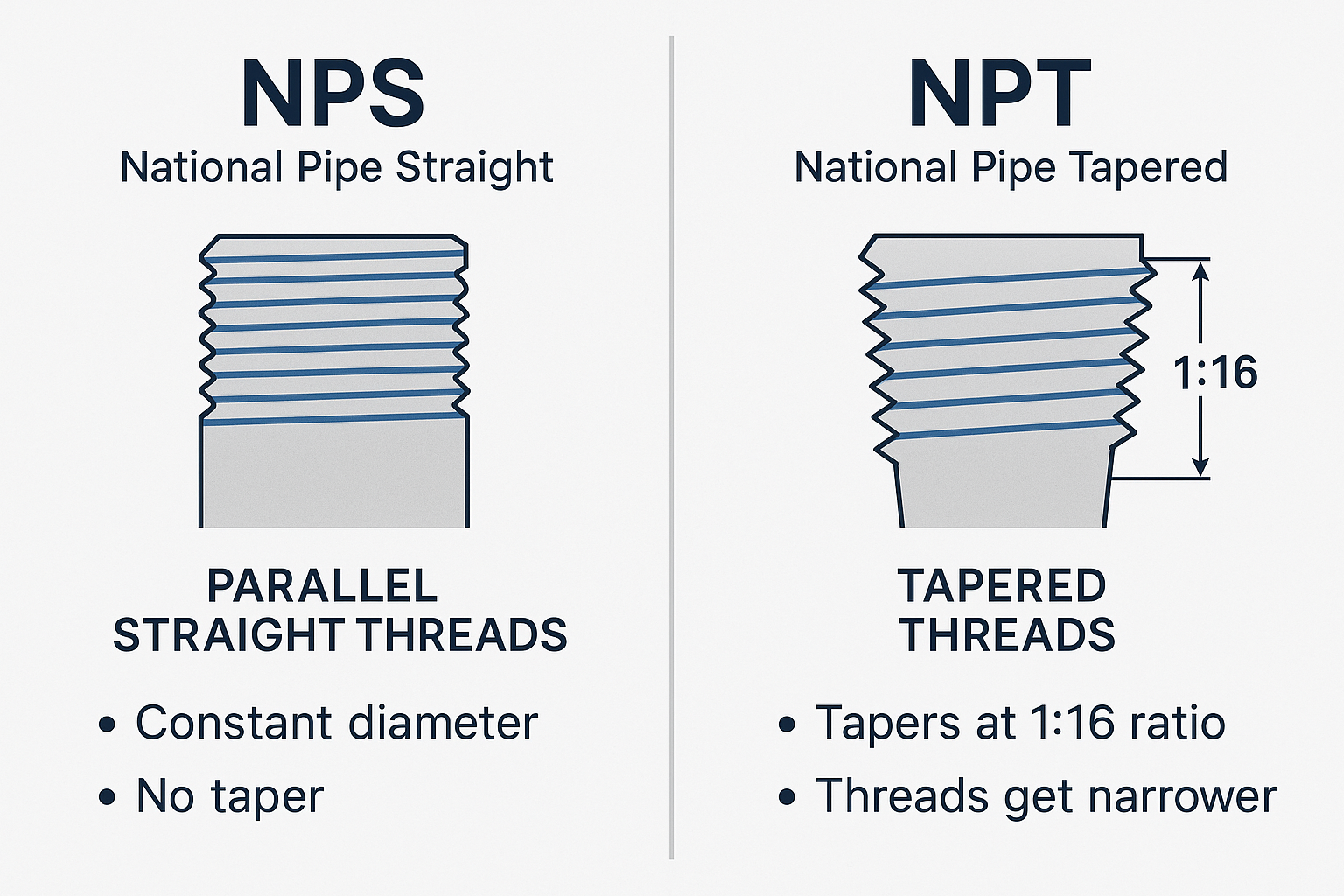

NPS vs NPT: Core Differences
| Feature | NPT (National Pipe Tapered) | NPS (National Pipe Straight) |
|---|---|---|
| Thread Shape | Tapered (narrower at the end). | Straight (parallel threads). |
| Sealing Method | Metal-to-metal compression (no gasket needed). | Requires gaskets, O-rings, or sealant. |
| Installation | Hand-tightening + Teflon tape/pipe dope. | Often needs tools (wrenches) and gaskets. |
| Best For | High-pressure, leak-critical systems. | Low-pressure, non-critical, or frequent disassembly. |
Why Taper Matters: The Advantages of NPT
The tapered design of NPT threads offers two key benefits:
- Self-Sealing: As NPT fittings are tightened, the threads “bite” into each other, closing gaps and creating a reliable seal—even in high-pressure applications like oil pipelines or sanitary food processing.
- Ease of Installation: Most NPT connections can be secured with hand strength alone (plus Teflon tape), making them ideal for tight spaces or quick repairs.
When to Use NPS Instead
NPS threads shine in scenarios where:
- Disassembly is frequent: Straight threads are less likely to wear out from repeated tightening/loosening (e.g., test ports or temporary connections).
- Gaskets are preferred: In systems with corrosive fluids, gaskets can be replaced without replacing the entire fitting.
- Cost is a factor: NPS tools and fittings are often cheaper for low-pressure, non-critical uses (e.g., irrigation or drain lines).
Real-World Applications
NPT Threads
- Sanitary Industries: Breweries, dairies, and pharmaceutical plants rely on NPT for leak-free transfer of liquids like beer, milk, or medications.
- Industrial Piping: Oil and gas pipelines, chemical processing, and HVAC systems use NPT for high-pressure, permanent connections.
- Plumbing: Residential water lines and gas lines often use NPT for their self-sealing properties.
NPS Threads
- Low-Pressure Systems: Rainwater harvesting, irrigation, or ventilation ducts where leaks pose minimal risk.
- Decorative Fittings: Furniture, handrails, or display systems where aesthetics matter more than pressure resistance.
- Valves and Gauges: Components that need regular removal for maintenance (e.g., pressure gauges or drain valves).
How to Identify NPT vs NPS
Telling them apart is simple with these tips:
- Look at the Threads: NPT threads appear “pointed” or narrower at the end; NPS threads are uniform along their length.
- Check the Label: Fittings often stamp “NPT” or “NPS” on the side. If not, “tapered” indicates NPT, while “straight” means NPS.
- Test Fit: NPT fittings will “catch” and tighten with minimal effort; NPS will spin freely until a gasket is added.
Final Thoughts
NPS and NPT threads may sound similar, but their designs and uses are worlds apart. NPT is the go-to for high-pressure, leak-critical systems, thanks to its self-sealing taper. NPS works best for low-pressure, temporary, or decorative applications where gaskets and easy disassembly are priorities. By understanding their differences, you’ll avoid costly mistakes and ensure your next plumbing or industrial project runs smoothly.
