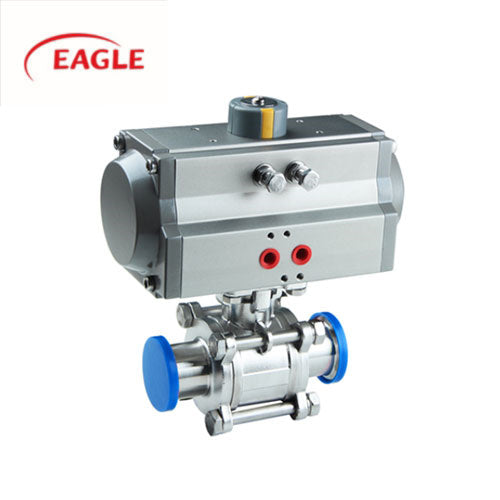

What is a Pneumatic Actuator Valve?

If you’ve ever found yourself asking the same questions—whether you’re outfitting a new production line or upgrading old equipment—you’re in the right place. Let’s cut through the jargon and get to the heart of what a pneumatic actuator valve is, how it works, and why it might be the perfect fit for your needs.

---

Quick Answer

A pneumatic actuator valve is an industrial valve that uses compressed air (pneumatics) to open, close, or adjust the flow of liquids/gases. It combines two core parts:

1. A valve body (the part that controls flow—like a ball, butterfly, or diaphragm valve).
2. A pneumatic actuator (the air-powered “motor” that moves the valve’s internal components).

Unlike manual valves (which require hand cranking) or electric valves (which need power), pneumatic actuator valves run on compressed air—making them ideal for many industrial settings.

---

What’s Inside a Pneumatic Actuator Valve?

Let’s break down the key components (simple enough for anyone to understand):

• Valve Body: The “pipe” part that connects to your system. Common types include ball valves (for on/off) or diaphragm valves (for sanitary flows).
• Pneumatic Actuator: The air-powered part attached to the valve. It uses compressed air to push or pull the valve’s internal parts.
• Diaphragm/Piston: Inside the actuator—either a flexible diaphragm (for small valves) or a piston (for larger ones) that moves when air is applied.
• Air Supply Port: Where compressed air enters the actuator (usually from an air compressor or line).
• Spring (Optional): In “spring-return” actuators, a spring pushes the valve back to its original position when air is cut off (e.g., closes if air fails).

---

How Does It Work? (3 Simple Steps)

Let’s use Lila’s soda line as an example:

1. Air In: Compressed air (from the plant’s air system) flows into the actuator.
2. Move the Valve: The air pushes the diaphragm/piston, which turns the valve’s ball or lifts its diaphragm—opening the flow of carbonated water.
3. Air Out: To close the valve, air is either cut off (spring-return) or pushed into the opposite side of the actuator (double-acting).

It’s that simple—no complicated wiring or heavy hydraulic fluids needed.

---

Why Choose a Pneumatic Actuator Valve?

For buyers like Lila, the benefits are clear:

1. Safe for Hazardous Areas: No electricity means no sparks—perfect for plants with flammable materials (like sugar dust or chemicals).
2. Fast Response: Air moves quickly, so the valve opens/closes in milliseconds—critical for lines that need precise timing (like bottling).
3. Low Maintenance: No motors or gears to oil—just replace the diaphragm every few years.
4. Cost-Effective: Cheaper than hydraulic valves and more durable than some electric ones.
5. Reliable: Works in extreme temperatures (from -40°F to 250°F) and wet environments.

---

Common Use Cases (Where It Shines)

Pneumatic actuator valves are everywhere—here are the industries that rely on them most:

• Food & Beverage: Sanitary pneumatic valves for bottling lines (like Lila’s soda plant) or dairy processing (no bacteria traps).
• Water Treatment: Air-operated valves for filter backwashing or chemical dosing.
• Pharmaceuticals: Sterile pneumatic valves for drug manufacturing (meets FDA standards).
• Oil & Gas: Explosion-proof pneumatic valves for pipeline control (no sparks near flammable gases).

---

How to Choose the Right Pneumatic Actuator Valve

If you’re a buyer, use this quick guide to pick the best option:

---

Final Takeaway

For you, the key is to match the valve to your process: Do you need sanitary materials? Fast response? Emergency shut-off?

Next time you’re looking at valve quotes, you’ll know exactly what a pneumatic actuator valve is—and why it might be the best choice for your line.
