What is a 90 Degree Pipe Clamp?

What is a 90 Degree Pipe Clamp?

If you’ve ever walked through a factory, brewery, or commercial kitchen, you’ve probably seen pipes snaking around corners—held steady by unassuming metal brackets. Chances are, many of those brackets were 90 degree pipe clamps—simple yet critical tools that keep pipelines stable, secure, and properly aligned at right-angle turns. But what exactly is a 90 degree pipe clamp, and why does it matter in industries like food processing, pharmaceuticals, or chemical manufacturing? Let’s break it down.

What is a 90 Degree Pipe Clamp?

A 90 degree pipe clamp (also called a right-angle pipe clamp) is a mechanical device designed to secure pipes at 90-degree bends. Unlike straight pipe clamps, which hold pipes along a linear path, these clamps are shaped to cradle pipes as they turn corners, preventing movement, vibration, or sagging over time.

Basic Structure:

Most 90 degree pipe clamps consist of three key parts:

  • Two Curved Clamp Halves: Molded to fit the pipe’s outer diameter (OD), often lined with rubber or silicone pads to grip the pipe without scratching.
  • Bolts/Nuts: Tighten the clamp halves around the pipe, creating a secure hold.
  • Mounting Base: A flat plate or bracket that attaches to walls, floors, or structural supports (e.g., steel beams).

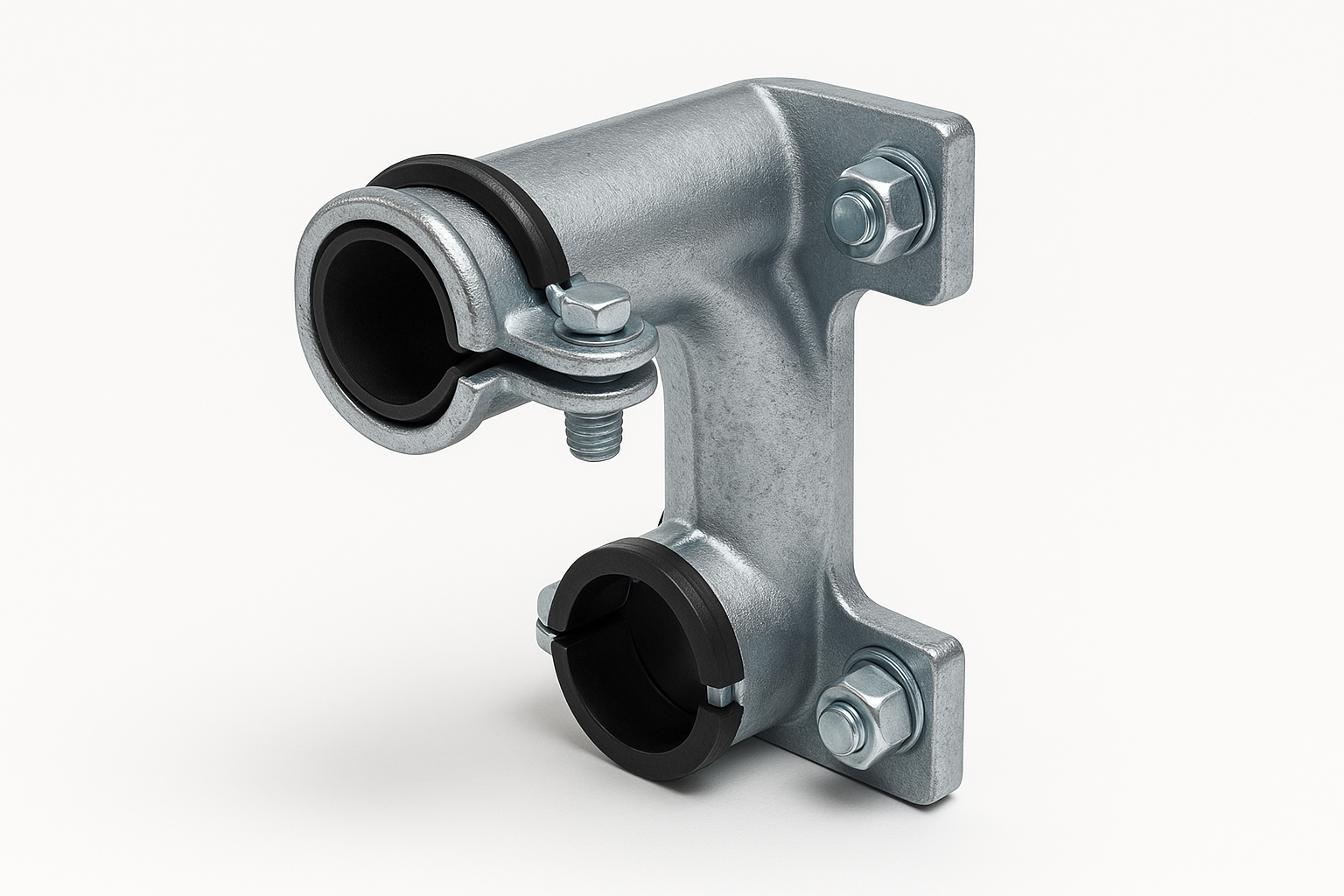

90 Degree Pipe Clamp

What Does a 90 Degree Pipe Clamp Do?

At its core, a 90 degree pipe clamp solves one big problem: pipe stability at corners. Pipes, especially those carrying liquids or gases under pressure, vibrate, expand/contract with temperature changes, and can shift over time. Without proper support, a 90-degree bend might sag, stress welds, or even crack—leading to leaks, downtime, or safety hazards.

Key Roles:

  • Prevents Movement: Stops pipes from sliding or rotating at bends, maintaining alignment in complex pipeline systems.
  • Reduces Vibration: Absorbs shocks from pumps or machinery, protecting welds and fittings from fatigue.
  • Protects Pipe Surfaces: Soft pads (rubber, EPDM) prevent metal-on-metal contact, avoiding scratches or corrosion.
  • Simplifies Installation: Provides a standardized way to mount pipes at corners, ensuring consistency across large projects.

Stainless Steel & Sanitary 90 Degree Pipe Clamps: When to Choose Them

Not all 90 degree pipe clamps are created equal. Two materials stand out for demanding industries:

Stainless Steel 90 Degree Pipe Clamps

Made from 304 or 316L stainless steel, these clamps resist rust, corrosion, and chemical damage—ideal for:

  • Wet Environments: Breweries, wastewater plants, or coastal facilities where moisture is constant.
  • Chemical Processing: Pipes carrying acids, solvents, or saltwater (316L adds molybdenum for extra chloride resistance).
  • Outdoor Use: Withstands rain, snow, and UV exposure without degradation.

Sanitary 90 Degree Pipe Clamps

Designed for industries where cleanliness is critical (food, pharmaceuticals, cosmetics), sanitary clamps feature:

  • Smooth, Crevice-Free Surfaces: No bolts or gaps where bacteria can hide, meeting FDA and 3A Dairy standards.
  • Polished Finishes: Electropolished stainless steel (Ra ≤ 0.8μm) for easy cleaning and CIP (Clean-in-Place) compatibility.
  • Food-Grade Pads: Silicone or PTFE liners that won’t leach chemicals into products like milk, beer, or medications.

Common Applications of 90 Degree Pipe Clamps

From factories to commercial kitchens, these clamps are everywhere pipes turn corners:

1. Industrial Piping

Chemical plants, refineries, and manufacturing facilities use heavy-duty stainless steel 90 degree clamps to secure pipes carrying oils, gases, or slurries. For example, a refinery’s 6-inch crude oil pipeline might use a 90 degree clamp to stabilize a bend near a pump, preventing vibration-related wear.

2. Sanitary Industries

Breweries, dairy farms, and pharmaceutical labs rely on sanitary 90 degree clamps to maintain sterility. A craft brewery, for instance, uses polished stainless steel clamps to secure wort lines as they turn from the kettle to the fermenter—ensuring no bacteria hides in crevices.

3. Commercial Buildings

HVAC systems, fire sprinklers, and plumbing in offices or hospitals use 90 degree clamps to keep pipes neat and stable. In a high-rise, these clamps might secure copper water lines as they turn between floors, preventing noisy vibrations or leaks.

Why Choose Eagle 90 Degree Pipe Clamps?

For over a decade, Eagle has been a trusted name in pipe support, with 90 degree clamps built for durability and versatility. Here’s why they stand out:

  • Stainless Steel Expertise: Eagle’s 304 and 316L stainless steel clamps resist corrosion, even in harsh industrial environments.
  • Sanitary Solutions: Their polished, crevice-free sanitary clamps meet 3A and FDA standards, perfect for food and pharma.
  • Global Reliability: Sold in 100+ countries, Eagle clamps are engineered to fit standard pipe sizes (½” to 24”) and work with metric or imperial systems.
  • Affordable Quality: By streamlining production, Eagle offers stainless steel clamps at 20–30% less than premium brands, without skimping on strength.

Quick Tips for Choosing the Right 90 Degree Pipe Clamp

  • Match Pipe Size: Measure the pipe’s OD (outer diameter) to ensure the clamp fits snugly (e.g., a 2” pipe needs a 2” clamp).
  • Consider the Environment: Use stainless steel for moisture/chemicals; sanitary for food/pharma; painted steel for dry, indoor use.
  • Check Load Capacity: Heavy pipes (e.g., 12” industrial lines) need reinforced clamps with thicker bolts and bases.

Final Thoughts

A 90 degree pipe clamp might seem like a small part, but it’s the backbone of stable, leak-free pipeline systems. Whether you’re securing a brewery’s beer line or an oil refinery’s chemical pipe, choosing the right clamp—like Eagle’s stainless steel or sanitary models—ensures safety, efficiency, and longevity. After all, in the world of piping, the smallest supports often make the biggest difference.
