In industrial, food, and pharmaceutical systems, maintaining stable pressure isn’t just about efficiency—it’s about safety. Two devices stand guard against pressure extremes: vacuum relief valves and pressure relief valves. While their names sound similar, they solve opposite problems, and mixing them up can lead to equipment collapse, product contamination, or even explosions. Below, we’ll break down their key differences, focus on the often-overlooked vacuum relief valve (especially sanitary stainless steel models), and explain why Eagle offers unbeatable value with options starting at $130.

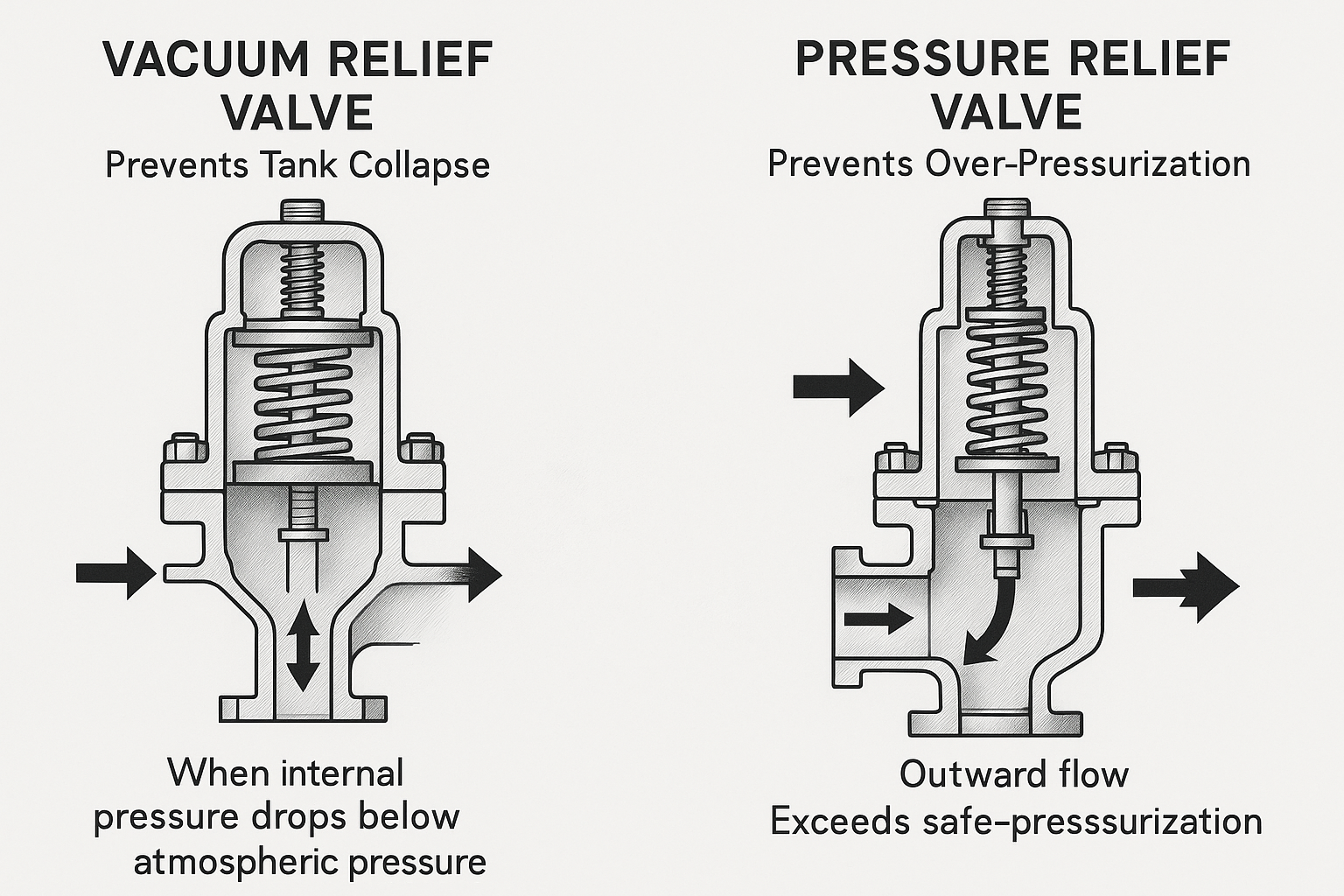

Vacuum Relief Valve vs. Pressure Relief Valve: What’s the Difference?
These valves are safety partners, but they protect against opposite threats. Think of them as “pressure sentinels”: one stops the system from “sucking in” (vacuum), the other from “bursting out” (overpressure).
Quick Comparison: Core Contrasts
| Aspect | Vacuum Relief Valve | Pressure Relief Valve |
|---|---|---|
| Primary Role | Prevents vacuum damage (tank implosion, wall collapse). | Prevents overpressure damage (rupture, explosion). |
| Triggers When | System pressure drops below atmospheric (e.g., -0.5 psi after draining hot fluid). | System pressure rises above safe limits (e.g., 15 psi in a sealed reactor). |
| Action | Opens to let air/inert gas IN, balancing pressure. | Opens to let fluid/gas OUT, releasing excess pressure. |
| Real-World Example | A dairy silo after CIP cleaning: hot water drains, creating a vacuum—the valve opens to suck in air, saving the tank from collapsing. | A brewery fermenter: yeast produces CO₂, pressure spikes—the valve vents gas to avoid tank rupture. |
Why Mixing Them Up Is Risky
Imagine a closed tank of syrup being cooled rapidly. As the syrup contracts, pressure plummets, forming a vacuum. If you mistakenly install a pressure relief valve instead of a vacuum relief valve, the valve won’t open—leaving the tank to implode. Conversely, using a vacuum relief valve in a high-pressure reactor won’t stop it from exploding when pressure spikes. Both valves are critical, but they never swap roles.
Focus: Vacuum Relief Valve (Sanitary & Stainless Steel)
Now, let’s dive into vacuum relief valves—the unsung heroes of systems prone to vacuum conditions. They’re especially vital in sanitary industries like food, pharma, and biotech, where even tiny flaws can ruin batches or trigger regulatory fines.
What Is a Vacuum Relief Valve?
A vacuum relief valve is a safety device that automatically opens when a closed system develops a vacuum (pressure lower than ambient air). By admitting air or inert gas, it equalizes pressure, protecting equipment from structural damage and preventing contamination (e.g., if a tank collapses, debris could mix with pharmaceuticals).
How It Works: Simple Mechanics
- At Rest: The valve stays closed, keeping the system sealed (e.g., a sterile drug storage tank).
- Vacuum Forms: When pressure drops below a set threshold (e.g., -0.3 psi), a spring-loaded disc lifts, drawing in air.
- Pressure Balances: Once pressure matches the outside, the disc seals shut, restoring system integrity.
Sanitary Vacuum Relief Valves: Built for Cleanliness
In industries where bacteria or residue spells disaster, sanitary vacuum relief valves are non-negotiable. They’re engineered to:
- Eliminate Contamination Risks: Smooth, electropolished surfaces (Ra ≤ 0.8μm) and crevice-free welds prevent bacterial hiding spots—critical for dairy, beer, or vaccine production.
- Withstand Harsh Cleaning: Survive daily CIP (Clean-in-Place) cycles with hot water, steam, or caustic chemicals (like peracetic acid) without corroding.
- Meet Strict Standards: 3A, FDA, and EHEDG certifications ensure compliance for audited facilities (e.g., baby food plants, bioreactors).
Why Stainless Steel Matters
Most sanitary vacuum relief valves use 316L stainless steel for two key reasons:
- Corrosion Resistance: Molybdenum in 316L fights rust from acids (citrus juice), saltwater, or cleaning agents—ideal for coastal breweries or seafood processing plants.
- Durability: Handles 10,000+ cycles (opening/closing) without warping, outlasting cheaper metals in busy facilities.
Eagle Sanitary Vacuum Relief Valves: From $130, 20-30% Cheaper Than Premium Brands
For businesses balancing safety, compliance, and budget, Eagle’s vacuum relief valves stand out. Designed for both sanitary and industrial use, they deliver:
Key Features of Eagle Valves
- 316L Stainless Steel as Standard: No cutting corners—even entry-level models use corrosion-resistant 316L, not flimsy 304 stainless steel.
- Full Sanitary Certifications: 3A, FDA, and ISO 9001 compliant, passing audits in food, pharma, and beverage industries without hassle.
- Precision Engineering: Smooth, weld-free bodies for easy CIP; spring-loaded discs that seal tight after use (no air leaks to ruin sterile processes).
Price That Makes Sense
Eagle skips middlemen, so you pay factory-direct:
- 1-inch Sanitary Vacuum Relief Valve: $130 (vs. $180–$220 from brands like Alfa Laval or SPX Flow).
- 2-inch Model: $180 (vs. $250+ from premium brands).
Real-World Savings Example: A craft brewery replacing 4 vacuum relief valves on fermenters would pay $520 with Eagle vs. $800+ with premium brands—saving enough for a new keg washer or batch of hops.
Ideal for These Industries
- Dairies: Protect milk silos during CIP cleaning (hot water drains create dangerous vacuums).
- Pharmas: Keep sterile reactors safe when draining solvents or cooling API batches.
- Beverage Makers: Save juice tanks or wine fermenters from collapse during rapid cooling.
Final Thoughts
Vacuum and pressure relief valves are the silent guardians of closed systems. Remember: vacuum valves let air IN to stop collapse; pressure valves let gas OUT to stop explosions. For sanitary industries, a stainless steel vacuum relief valve (like Eagle’s) is non-negotiable for cleanliness and compliance. And with Eagle starting at $130, you don’t have to overpay for safety.
